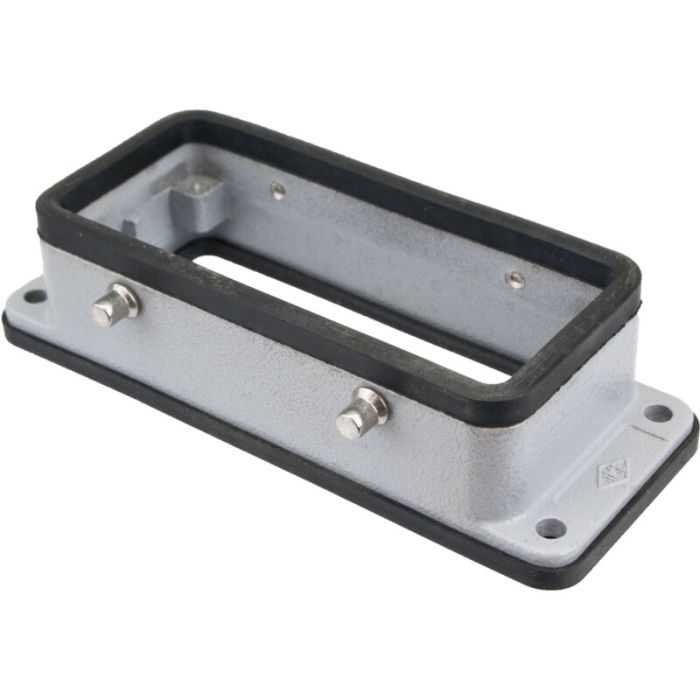

Panel Mounting Base - E Series - Locking Lever C-Type - 2 Levers

• Rated current: 10A - 16A - 35A - 40A - 80A
• Rated voltage: up to 600V
• Protection degree: IP65/IP66/IP69
• Min. operating ambient temperature: -40°C (for most inserts)
• Max. operating ambient temperature: +125°C (for most inserts)
• Self-extinguishing GW test: 960°C
• Self-extinguishing UL94: V0
• IK degree at 20°C: IK10 (20J)

Surface mount base allow for mounting a connector to a panel and feed cable through the base

• Use panel mount bases to mate with hoods
