Solenoids

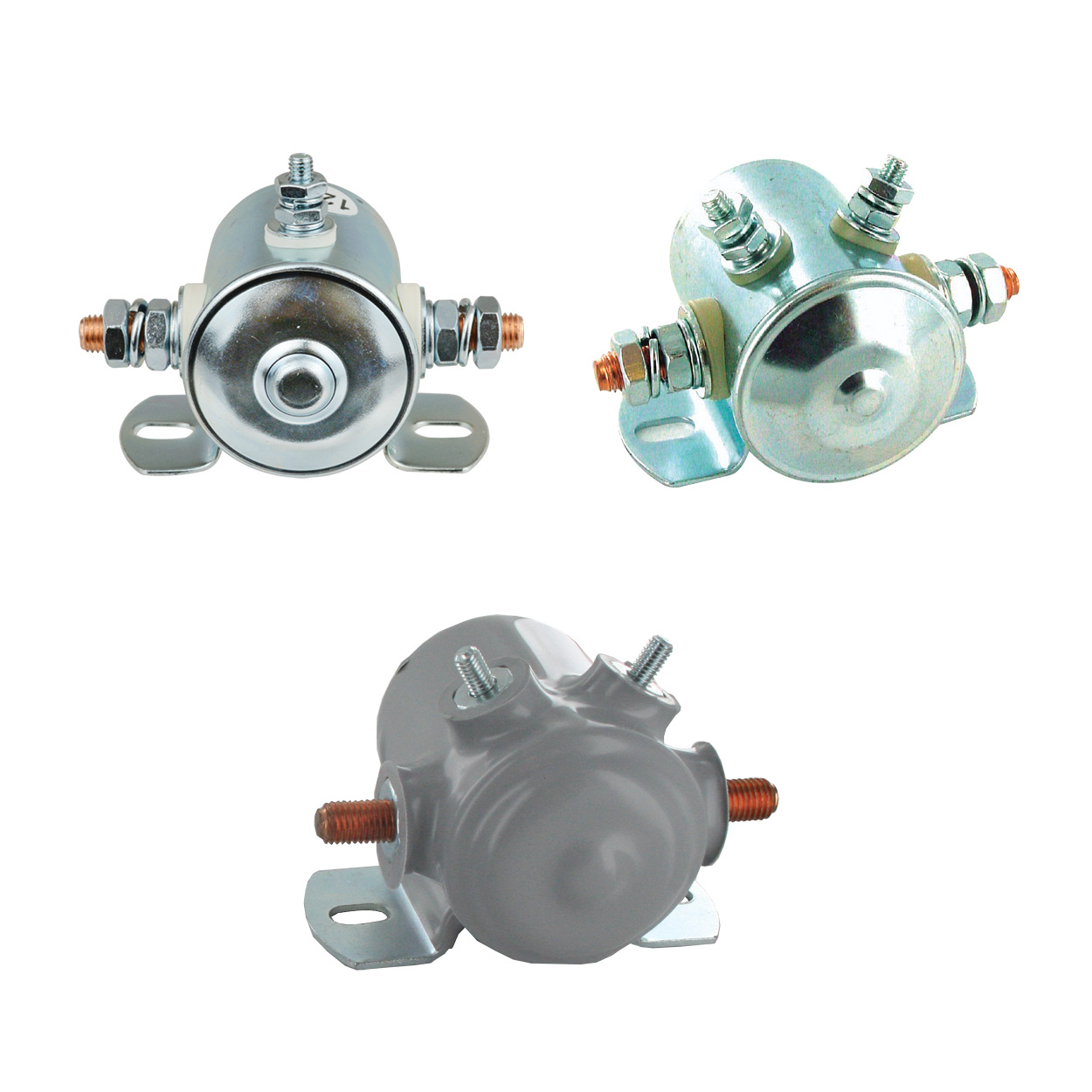

Continuous-duty solenoids are SPST, normally open, OFF-ON switches built to control high-current loads like starters, winches, and auxiliary equipment in 12V and 24V systems. Techspan offers steel and coated-steel housings rated up to 100A continuous with 150A inrush, available in 3- and 4-stud configurations to match your wiring layout. The coated-steel 12V model is UL Listed and offers added corrosion resistance for demanding environments. Rugged metal construction makes these solenoids a reliable choice for automotive, marine, RV, and industrial power switching.
- Switch type: SPST, continuous-duty, normally open contacts (Normally OFF), OFF-ON operation.
- Steel housing models: 100A continuous / 150A inrush (12V, 3-stud) and 85A continuous / 150A inrush (12V and 24V, 4-stud).
- Coated-steel model: 12V, 4-stud, 100A continuous / 150A inrush with added corrosion protection.
- Certification: coated-steel 12V solenoid is UL Listed.
- Applications: starter, winch, and high-current accessory switching across automotive, marine, RV, and industrial equipment.
