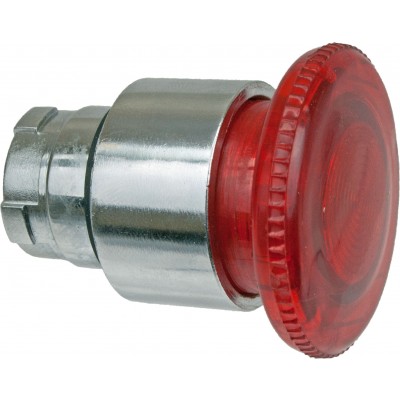

Illuminated 40mm Mushroom Head
Illuminated 40mm Mushroom Head Push Buttons provide highly visible control and status indication for industrial machinery and equipment. Their large mushroom-shaped actuator and integrated illumination improve operator recognition, accessibility, and ease of use in demanding environments.
- Large 40mm mushroom head offers enhanced visibility and easy actuation.
- Integrated illumination provides clear indication of button status or function.
- Durable construction ensures dependable performance in industrial applications.
- Ideal for control panels, machinery, automation systems, and operator stations requiring prominent control devices.
-
Illuminated Mushroom Head 40mm - 2 Position Momentary - GreenItem # PB-BW43View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NameIlluminated Mushroom Head 40mm - 2 Position Momentary - Green
-
BrandTechspan
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourGreen
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 40mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedUL StandardcULus ListedCSA StandardCSA Certified
-
Illuminated Mushroom Head 40mm - 2 Position Momentary - RedItem # PB-BW44View More InfoView Less InfoView More InfoView Less Info© 2026 Techspan Industries Inc.-
Package QuantityEA
-
NameIlluminated Mushroom Head 40mm - 2 Position Momentary - Red
-
BrandTechspan
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourRed
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 40mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedUL StandardcULus ListedCSA StandardCSA Certified
-
Illuminated Mushroom Head 40mm - 2 Position Momentary - Stay Put - GreenItem # PB-BW63View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NameIlluminated Mushroom Head 40mm - 2 Position Momentary - Stay Put - Green
-
BrandTechspan
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourGreen
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 40mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonStay Put
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedUL StandardcULus ListedCSA StandardCSA Certified
-
Illuminated Mushroom Head 40mm - 2 Position Momentary - Stay Put - RedItem # PB-BW64View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NameIlluminated Mushroom Head 40mm - 2 Position Momentary - Stay Put - Red
-
BrandTechspan
-
ColourRed
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 40mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonStay Put
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedUL StandardcULus ListedCSA StandardCSA Certified
