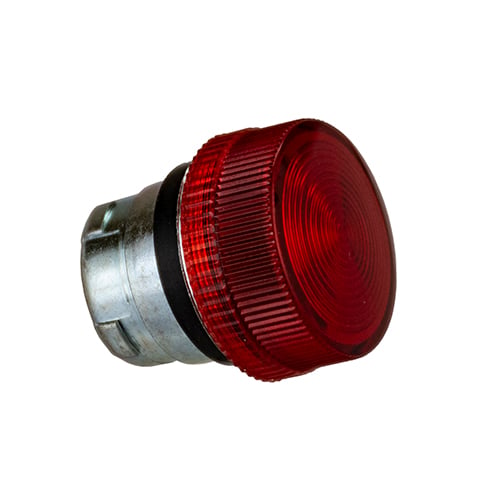

Pilot Lights
Pilot Lights provide clear visual indication of equipment status, operating conditions, and control functions within industrial systems. Designed for reliability and visibility, they help operators quickly monitor processes and respond to changing conditions.
- Bright illumination provides clear status indication and improved operator awareness.
- Durable construction ensures dependable performance in industrial environments.
- Available in multiple colors to support a variety of signaling and indication requirements.
- Ideal for control panels, machinery, automation systems, and process monitoring applications.
-
Pilot Light Head - High Contrast for use with Neon Bulbs or LED's - AmberItem # PB-BVL05View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NamePilot Light Head - High Contrast for use with Neon Bulbs or LED's - Amber
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourAmber
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
Pilot Light Head - High Contrast for use with Neon Bulbs or LED's - BlueItem # PB-BVL06View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NamePilot Light Head - High Contrast for use with Neon Bulbs or LED's - Blue
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
ColourBlue
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
Pilot Light Head - High Contrast for use with Neon Bulbs or LED's - ClearItem # PB-BV07View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NamePilot Light Head - High Contrast for use with Neon Bulbs or LED's - Clear
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourClear
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonPilot Light
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedShipping Dimensions (cm)2.8 L 2.8 W 3 HShipping Weight (kg)0.0500
-
Pilot Light Head - High Contrast for use with Neon Bulbs or LED's - GreenItem # PB-BVL03View More InfoView Less InfoView More InfoView Less Info© 2026 Techspan Industries Inc.-
Package QuantityEA
-
NamePilot Light Head - High Contrast for use with Neon Bulbs or LED's - Green
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourGreen
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonPilot Light
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedShipping Dimensions (cm)2.8 L 2.8 W 3.1 HShipping Weight (kg)0.0480
-
Pilot Light Head - High Contrast for use with Neon Bulbs or LED's - RedItem # PB-BVL04View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NamePilot Light Head - High Contrast for use with Neon Bulbs or LED's - Red
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourRed
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonPilot Light
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedShipping Dimensions (cm)2.7 L 2.8 W 3 HShipping Weight (kg)0.0500
-
Pilot Light Head - High Contrast for use with Neon Bulbs or LED's - WhiteItem # PB-BVL01View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NamePilot Light Head - High Contrast for use with Neon Bulbs or LED's - White
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourWhite
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonPilot Light
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
