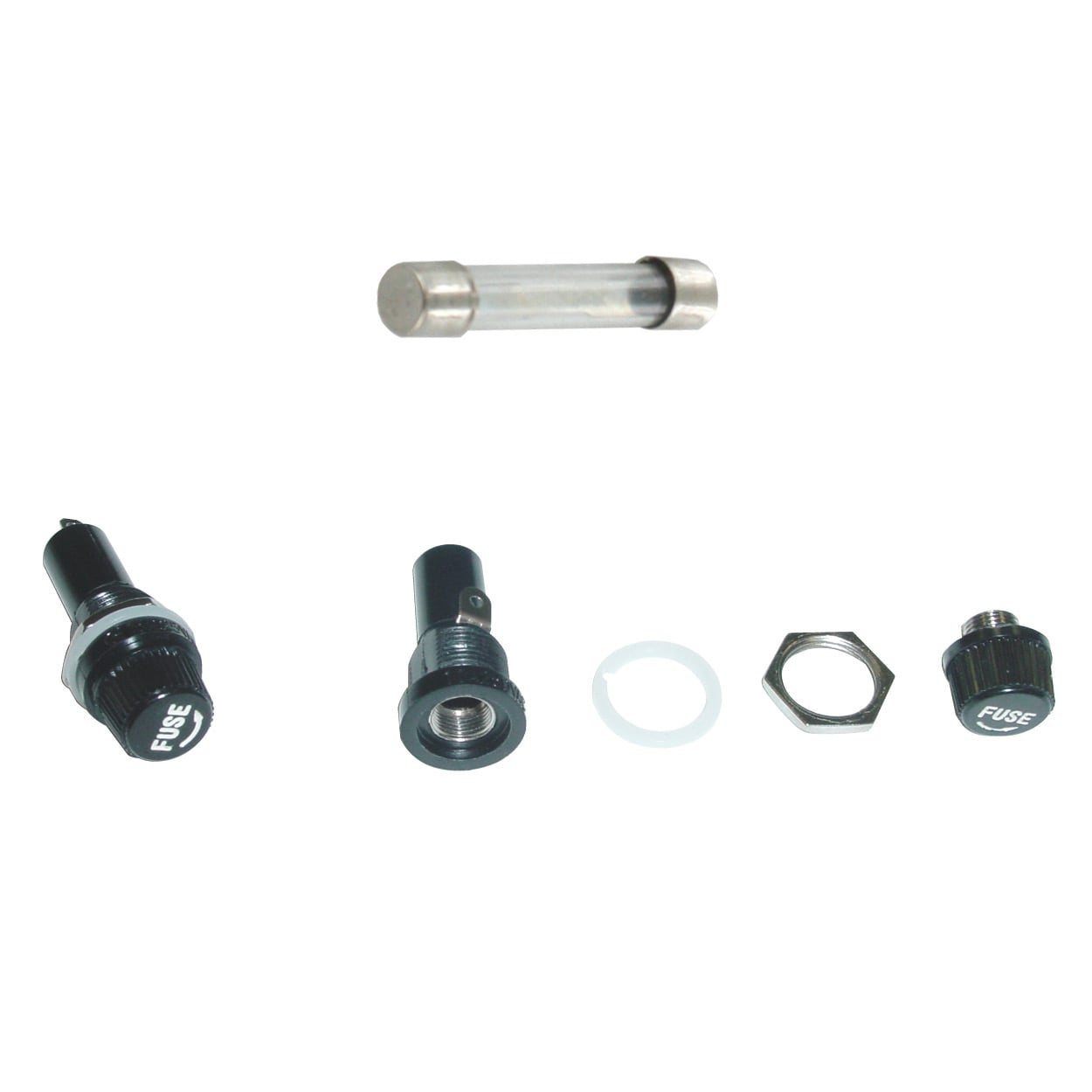

Panel Mount Fuse Holders
Professional panel mount fuse holders designed for SFE and AGC glass tube fuses. These holders feature spring-loaded bottom contacts and finger grip type knobs with nickel-plated copper alloy inserts for reliable electrical connections. Built with Bakelite insulation that withstands 2000VAC R.M.S. for one minute, these panel mount holders provide secure fuse retention and easy replacement access.
- Compatible with SFE and AGC glass tube fuses
- Rated 10A @ 250VAC for electrical system protection
- Spring-loaded bottom contact ensures secure fuse connection
- Finger grip type knob with nickel-plated copper alloy insert
- Bakelite insulation withstands 2000VAC R.M.S. for one minute
- Mounts in standard 1/2" (12.7mm) diameter panel hole with nickel-plated copper alloy solderable terminal
