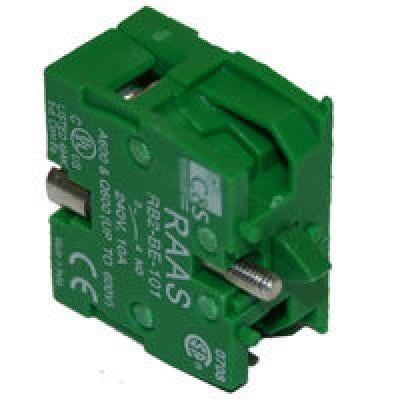

Contact Blocks
Base Mounted Contact Blocks for use with RCIP Enclosures provide reliable switching functionality for industrial control applications. Designed for seamless integration within RCIP enclosure systems, they offer dependable electrical performance and flexible control configurations.
- Designed for compatibility with RCIP enclosures and associated control devices.
- Provides reliable switching performance for industrial control circuits.
- Durable construction ensures long-lasting operation in demanding environments.
- Supports flexible control panel configurations for automation and machinery applications.
-
Additional/Replacement Contact Block - Normally ClosedItem # PB-BE102View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NameAdditional/Replacement Contact Block - Normally Closed
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ContactNC
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonStandard
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
View More InfoView Less Info-
Package QuantityEA
-
NameAdditional/Replacement Contact Block - Normally Open
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ContactNO
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonStandard
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
View More InfoView Less Info-
Package QuantityEA
-
NameContact Block (Base Mounted) - Normally Open
-
BrandTechspan
-
