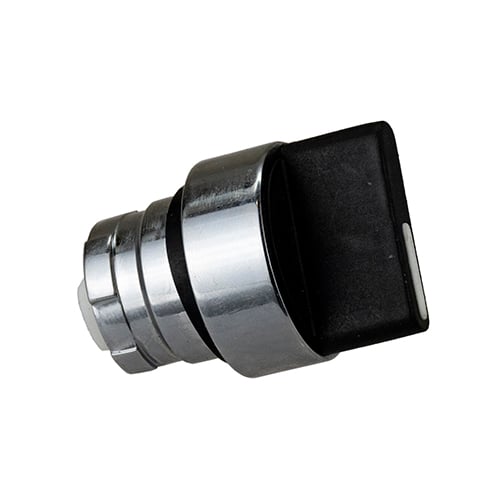

Selector Switches
Selector Switches provide a simple and reliable method for choosing between multiple operating modes or control functions within industrial systems. Designed for durability and ease of use, they offer precise control and clear position indication for operators.
- Allows operators to easily select and maintain specific operating modes or functions.
- Durable construction ensures dependable performance in industrial environments.
- Available in multiple position configurations to accommodate a wide range of applications.
- Ideal for control panels, automation equipment, machinery, and process control systems.
-
2 Position Plastic Operating Heads for Selector Switches - Stay Put - Standard HandleItem # PB-BD2PView More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
Name2 Position Plastic Operating Heads for Selector Switches - Stay Put - Standard Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorStandard Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonStay Put
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
2 Position Selector Switch - Spring Return - Long HandleItem # PB-BJR2View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
Name2 Position Selector Switch - Spring Return - Long Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorLong Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonStay Put
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
2 Position Selector Switch - Spring Return to Centre - Standard HandleItem # PB-BDR2View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
Name2 Position Selector Switch - Spring Return to Centre - Standard Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorStandard Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonSpring Return to Centre Form
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
View More InfoView Less Info-
Package QuantityEA
-
Name2 Position Selector Switch - Stay Put - Long Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorLong Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonStay Put
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
View More InfoView Less Info-
Package QuantityEA
-
Name2 Position Selector Switch - Stay Put - Standard Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorStandard Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonStay Put
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
3 Position Selector Switch - 1 Spring Return Left to Centre - Long HandleItem # PB-BJ7View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
Name3 Position Selector Switch - 1 Spring Return Left to Centre - Long Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorLong Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push button1 Spring Return Left to Centre
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
3 Position Selector Switch - 1 Spring Return Left to Centre - Standard HandleItem # PB-BD7View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
Name3 Position Selector Switch - 1 Spring Return Left to Centre - Standard Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorStandard Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push button1 Spring Return Left to Centre
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
3 Position Selector Switch - 1 Spring Return Right to Centre - Long HandleItem # PB-BJ8View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
Name3 Position Selector Switch - 1 Spring Return Right to Centre - Long Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorLong Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push button1 Spring Return Right to Centre
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
3 Position Selector Switch - 1 Spring Return Right to Centre - Standard HandleItem # PB-BD8View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
Name3 Position Selector Switch - 1 Spring Return Right to Centre - Standard Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorStandard Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push button1 Spring Return Right to Centre
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedShipping Dimensions (cm)2.9 L 2.8 W 4.4 HShipping Weight (kg)0.0720
-
3 Position Selector Switch - Spring Return - Long HandleItem # PB-BJR3View More InfoView Less InfoView More InfoView Less Info© 2026 Techspan Industries Inc.-
Package QuantityEA
-
Name3 Position Selector Switch - Spring Return - Long Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorLong Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonSpring Return
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
3 Position Selector Switch - Spring Return - Standard HandleItem # PB-BDR3View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
Name3 Position Selector Switch - Spring Return - Standard Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorStandard Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonSpring Return
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowed
-
View More InfoView Less Info-
Package QuantityEA
-
Name3 Position Selector Switch - Stay Put - Long Handle
-
BrandTechspan
-
ApprovalUL, cUL, CSA, CE
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
OperatorLong Handle
-
Pollution Degree3
-
Protection DegreeIP65
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonStay Put
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedShipping Dimensions (cm)3.8 L 2.8 W 4.4 HShipping Weight (kg)0.0740
-
-
-
-
-
-
-
-
-
-
-
-
