Female Insert - E Series Screw Terminal Connection - 16 Poles - 600V/16A

Item
E16RS
  • Protection Degree: IP65/IP66/IP69
  • Minimum operating ambient temperature: -40°C (for most inserts)
  • Maximum operating ambient temperature: 125°C (for most inserts)
  • Self-extinguishing GW test: 960°C
  • Self-extinguishing UL 94: V0
  • IK degree at 20°C: IK10 (20J)

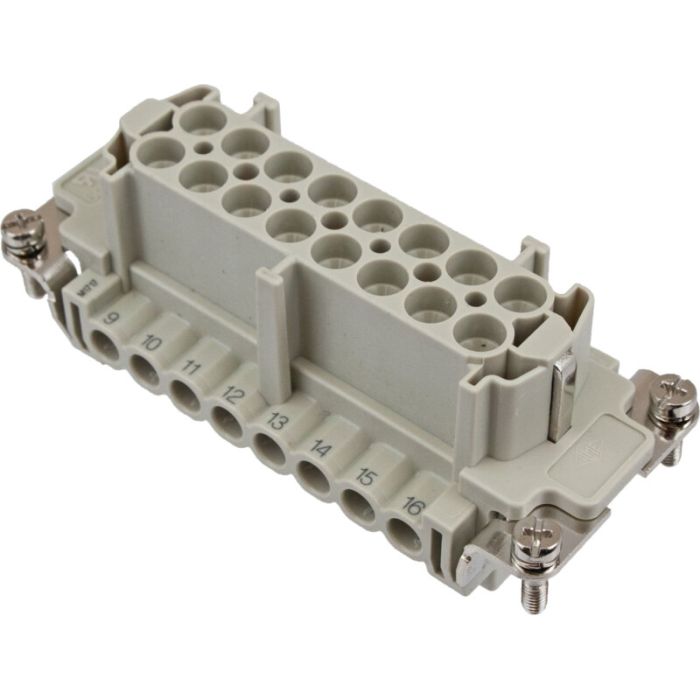

main product photo
  • Type - multi connectors
    Insert
  • Series - Multi Connect
    E
  • Number of Poles
    16
  • Gender
    Female Receptacle
  • Connection Type
    Screw Terminal Connection
  • Voltage - multi connectors
    600V
  • Shipping Dimensions (cm)
    3.3 L 8.3 W 3.5 H
  • Shipping Weight (kg)
    0.0840
  • Amps
    16
  • Mounting
    Straight
  • UL Standard
    cULus Listed
  • CSA Standard
    CSA Certified
  • Enclosure Size (see diagram table)
    H - 77.5 x 27 mm
