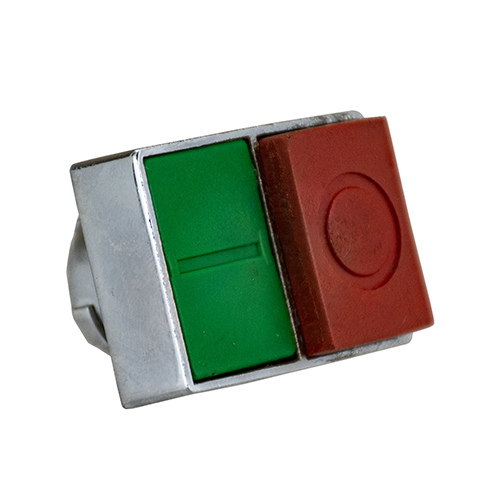

Double Headed Push Buttons
Double Headed Push Buttons provide dual-direction control in a single compact device, making them ideal for applications requiring start/stop, forward/reverse, or open/close functions. Their ergonomic design and dependable operation help improve efficiency and operator control in industrial environments.
- Combines two control functions into a single space-saving device.
- Clearly defined button heads allow for intuitive and accurate operation.
- Durable construction supports reliable performance in demanding applications.
- Suitable for machinery control, automation systems, and industrial control panels.
-
Double Headed Push Button - Chromium Plated Metal Bezel - Green/Amber/RedItem # PB-BW9View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NameDouble Headed Push Button - Chromium Plated Metal Bezel - Green/Amber/Red
-
BrandTechspan
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourGreen/Amber/Red
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
MarkingGREEN - I RED - O
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push button1 Flush Push Button 1 Pilot Light (in Centre) 1 Flush Push Button
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedShipping Dimensions (cm)2.8 L 5.4 W 2.7 HShipping Weight (kg)0.0400UL StandardcULus ListedCSA StandardCSA Certified
-
Illuminated Double Head Push Button with off Projected - Green/Amber/RedItem # PB-BLW9View More InfoView Less InfoView More InfoView Less Info© 2026 Techspan Industries Inc.-
Package QuantityEA
-
NameIlluminated Double Head Push Button with off Projected - Green/Amber/Red
-
BrandTechspan
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourGreen/Amber/Red
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
MarkingGREEN - I RED - O
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonIlluminated Double Head Push Button with off Projected
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedUL StandardcULus ListedCSA StandardCSA Certified
-
Illuminated Double Head Push Button with off Projected - Green/RedItem # PB-BL87View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NameIlluminated Double Head Push Button with off Projected - Green/Red
-
BrandTechspan
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourGreen/Red
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
MarkingGREEN - I RED - O
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push buttonIlluminated Double Head Push Button with off Projected
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedUL StandardcULus ListedCSA StandardCSA Certified
-
Non illuminated Flush Double Push Button - Spring Return - Red/GreenItem # PB-BA87View More InfoView Less InfoView More InfoView Less Info-
Package QuantityEA
-
NameNon illuminated Flush Double Push Button - Spring Return - Red/Green
-
BrandTechspan
-
Cabling/Terminal Capacity1x0.5mm² and 2x1.5mm²
-
ColourGreen/Red
-
Contact OperationSlow action, Positive Opening
-
Dielectric Strength2.5KV for 1 minute
-
Initial Contact Resistance≤ 25 milli Ohm
-
Insulation CategoryGroup C conforming to NF C 20-040, VDE 0110
-
Insulation Resistance2M Ohm min (500 VDC)
-
Knob SizeØ ≤ 25mm
-
MarkingGREEN - I RED - O
-
Mechanical LifeAll working positions are allowed
-
Operating ForcePush Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
-
Pollution Degree3
-
Rated Insulation Voltage500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
-
Rated PowerConforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
-
Rated Thermal Current10A
-
Reference StandardIEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
-
Shock ResistancePush Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
-
Short Circuits Protection10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
-
Temperature-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
-
Type - push button2 Flush Push Buttons, Spring Return W/O Pilot Light - IP40
-
Vibration Resistance60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40HzWorking PositionAll Working positions are allowedUL StandardcULus ListedCSA StandardCSA Certified
