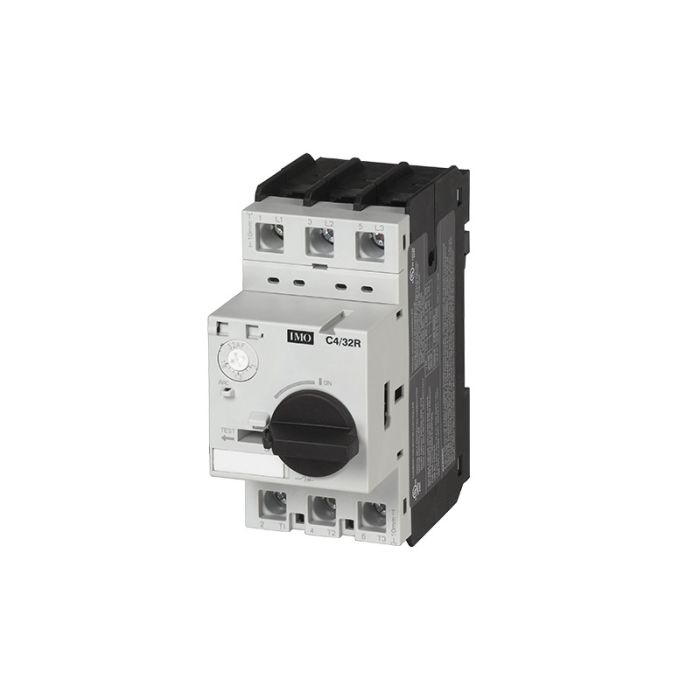

C4/32R with Rotary Switch - Setting Range 11.0-17.0A IRC* 221A

Item
C4/32R-17
  • Specifically designed for protecting motors from overcurrents (0.1–100A) and short circuits
  • Ultimate breaking capacity of up to 100kA for protection against high fault current conditions
  • Wide range of add-on accessories available for enhanced functionality and simplified installation
  • Approval certifications including cULus listing to UL508
  • Short Circuit Capacity (kA)
    50.00
  • Rated Voltage (V)
    690V
  • Rated Current (A)
    17A
  • Number of Poles
    3P
  • Temperature Range °C
    -20°C to 60°C
  • IP Rating
    IP20
  • Cable Sizes (AWG)
    1 x (18 - 8), 2 x (18 - 10)AWG
  • Cable Sizes (mm²)
    1 x (1 - 10), 2 x (1 - 6)mm²
  • Rated Power (kW)
    7.50
