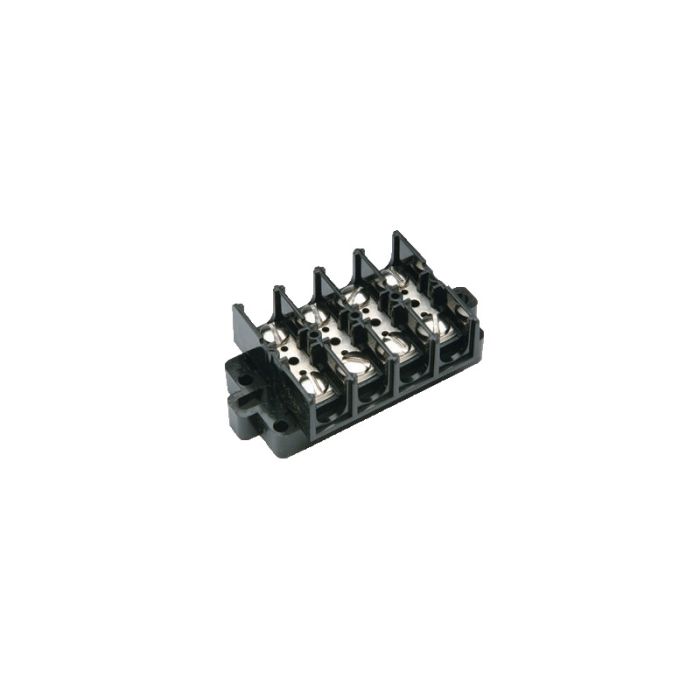

Commercial Terminal Blocks - Eight Conductors
Item
151608
- For use in service equipment, switchboards, panelboards, and service entrance devices.
- Constructed with 94V-1 grade Noryl for durability and electrical insulation.
- Design utilizes adjustable metal mounting eyelets for easy installation and evenly distributed mounting screw pressure.
- Screws are friction-locked to prevent loosening.
- Rated for service at 600V.
- Ratings:
- Wire Range: Line Side – CU max. 6 (UL); 8 (CSA), Load Side – CU max. 10 (UL); 8 (CSA)
- Temperature Rating: 80°C
- Amp Rating: 60 amp with #6 wire, 30 amp with other wire
- Torque: 20 in-lbs
- Meets 125V UL service entrance equipment requirements.
- All blocks can accommodate lugs up to 0.44" pad width.
