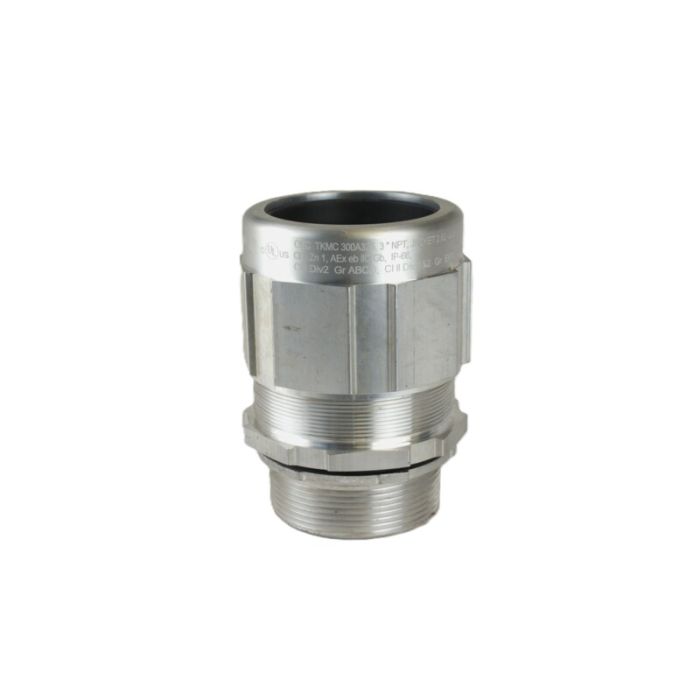

3" NPT - Spring Ground Teck Connector - 2.62" to 3.25" Cable OD
- Simplified two-piece design for fast and easy installation
- Wide cable range offers increased flexibility across applications
- Helps reduce inventory complexity with fewer SKUs required
- Integrated grommet provides reliable IP66-rated sealing protection
- Aluminum locknut supplied with all sizes for secure and stable mounting
-
Thru Bore Max Inch [mm]
2.717" [69.01mm]
-
Area Classification
Ex e II, Class I, Zone 1, AEx e II, AEx ta IIC
-
UL Standards
UL 514B, 2225
-
Grounding Style
Spring Ground
-
Cable Type
MCC, MC-HL, TECK
-
Operating Temperature
-50°C to +85°C
-
Outer Jacket Diameter Max. Inch [mm]
3.250" [82.6mm]
-
Outer Jacket Diameter Min. Inch [mm]
2.620" [66.55mm]
-
Outer Armor Diameter Max. Inch [mm]
3.050" [77.48mm]
-
Outer Armor Diameter Min. Inch [mm]
2.490" [63.25mm]
-
Width Inch [mm]
4.331" [110mm]
-
-
-
Hub Size Inch [mm]
3" [76.2mm]
-
-
Shipping Dimensions (cm)
11.4 L 11.2 W 15.7 H
-
-
Shipping Weight (kg)
1.3020
-
Grounding
360° Stainless Steel Spring Ground
