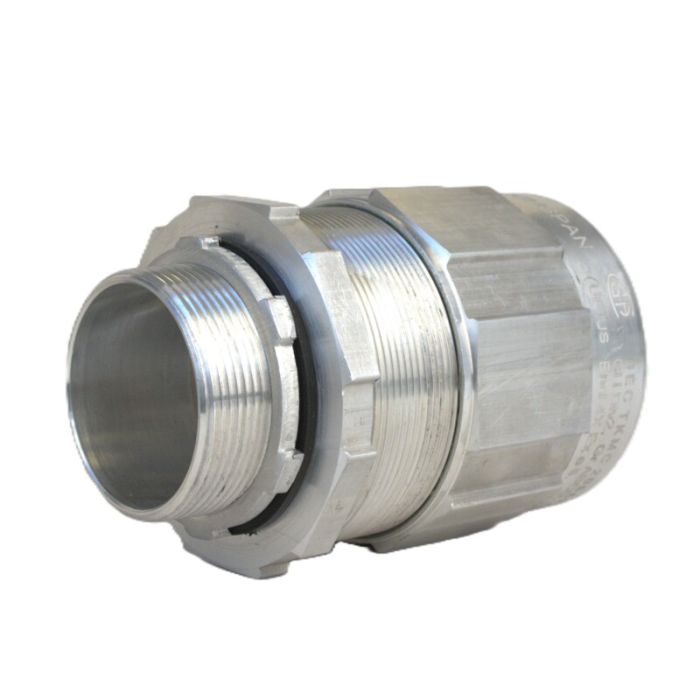

2" NPT - Spring Ground Teck Connector - 2.38" to 2.66" Cable OD
- Simplified two-piece design for fast and easy installation
- Wide cable range offers increased flexibility across applications
- Helps reduce inventory complexity with fewer SKUs required
- Integrated grommet provides reliable IP66-rated sealing protection
- Aluminum locknut supplied with all sizes for secure and stable mounting
-
Thru Bore Max Inch [mm]
2.071" [52.60mm]
-
Area Classification
Ex e II, Class I, Zone 1, AEx e II, AEx ta IIC
-
UL Standards
UL 514B, 2225
-
Grounding Style
Spring Ground
-
Cable Type
MCC, MC-HL, TECK
-
Operating Temperature
-50°C to +85°C
-
Outer Jacket Diameter Max. Inch [mm]
2.660" [67.56mm]
-
Outer Jacket Diameter Min. Inch [mm]
2.380" [60.45mm]
-
Outer Armor Diameter Max. Inch [mm]
2.460" [62.48mm]
-
Outer Armor Diameter Min. Inch [mm]
2.250" [57.15mm]
-
Width Inch [mm]
3.543" [90mm]
-
-
-
Hub Size Inch [mm]
2" [50.8mm]
-
-
Shipping Dimensions (cm)
12.6 L 12.4 W 19 H
-
-
Shipping Weight (kg)
0.7500
-
Grounding
360° Stainless Steel Spring Ground
