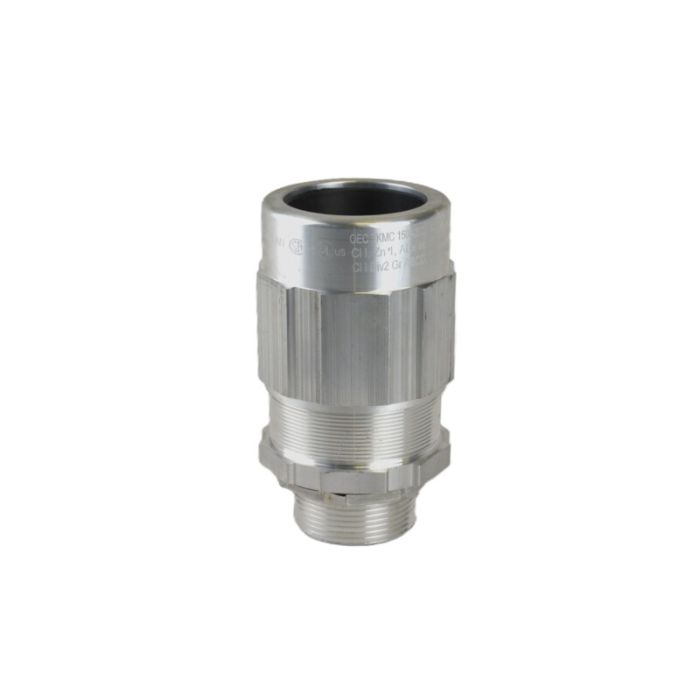

1 1/2" NPT - Spring Ground Teck Connector - 1.67" to 1.98" Cable OD
- Simplified two-piece design for fast and easy installation
- Wide cable range offers increased flexibility across applications
- Helps reduce inventory complexity with fewer SKUs required
- Integrated grommet provides reliable IP66-rated sealing protection
- Aluminum locknut supplied with all sizes for secure and stable mounting
-
Thru Bore Max Inch [mm]
1.610" [40.89mm]
-
Area Classification
Ex e II, Class I, Zone 1, AEx e II, AEx ta IIC
-
UL Standards
UL 514B, 2225
-
Grounding Style
Spring Ground
-
Cable Type
MCC, MC-HL, TECK
-
Operating Temperature
-50°C to +85°C
-
Outer Jacket Diameter Max. Inch [mm]
1.980" [50.29mm]
-
Outer Jacket Diameter Min. Inch [mm]
1.670" [42.42mm]
-
Outer Armor Diameter Max. Inch [mm]
1.860" [47.24mm]
-
Outer Armor Diameter Min. Inch [mm]
1.590" [40.39mm]
-
Width Inch [mm]
2.756" [70mm]
-
-
-
Hub Size Inch [mm]
1 1/2" [38.1mm]
-
-
-
Grounding
360° Stainless Steel Spring Ground
