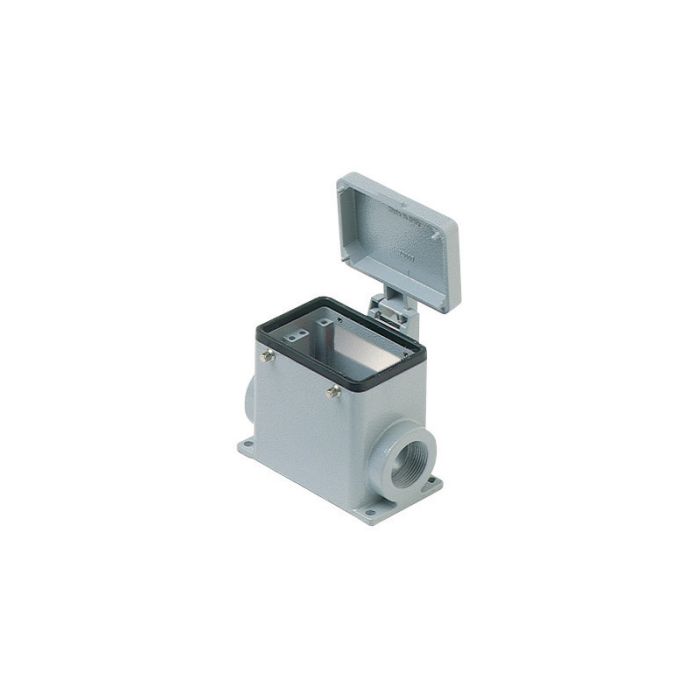

Surface Mounting Base - A Series - Locking Lever C-Type - 2 Levers - Pg21 x 2 - w/ Metal Cover
Item
AS2P32DC5
- Rated current: 10A - 16A - 35A - 40A - 80A
- Rated voltage: up to 600V
- Protection degree: IP65/IP66/IP69
- Min. operating ambient temperature: -40°C (for most inserts)
- Max. operating ambient temperature: +125°C (for most inserts)
- Self-extinguishing GW test: 960°C
- Self-extinguishing UL94: V0
- IK degree at 20°C: IK10 (20J)
Surface mount base allow for mounting a connector to any surface or panel as required and provide cable entry to the base
- Use surface mount bases to mate with hoods
