Female Insert - E Series SQUICH Spring Terminal Connection Without Tools - 10 Poles - 600V/16A

Item
E10RP
  • Protection Degree: IP65/IP66/IP69
  • Minimum operating ambient temperature: -40°C (for most inserts)
  • Maximum operating ambient temperature: 125°C (for most inserts)
  • Self-extinguishing GW test: 960°C
  • Self-extinguishing UL 94: V0
  • IK degree at 20°C: IK10 (20J)

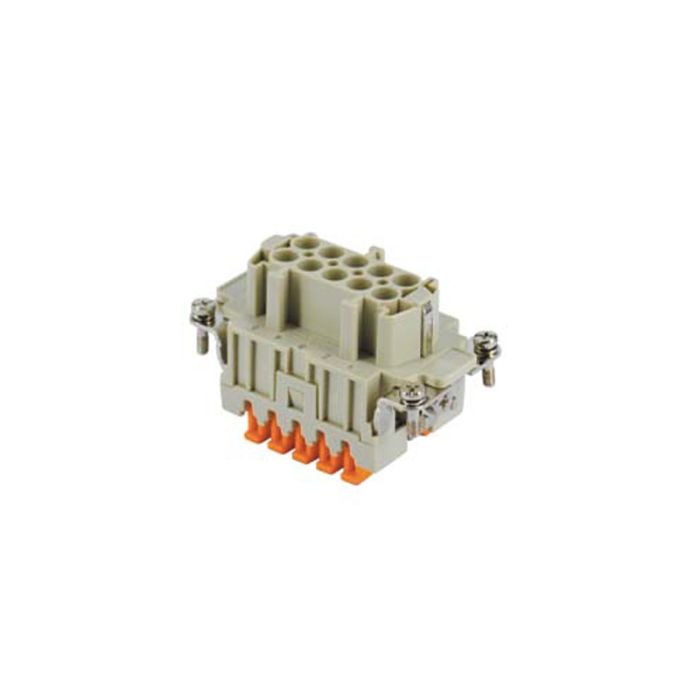

main product photo
  • Type - multi connectors
    Insert
  • Series - Multi Connect
    E
  • Number of Poles
    10
  • Gender
    Female Receptacle
  • Connection Type
    SQUICH® Spring Terminal Connection Without Tools
  • Voltage - multi connectors
    600V
  • Shipping Dimensions (cm)
    3.4 L 6.3 W 4.2 H
  • Shipping Weight (kg)
    0.0680
  • Amps
    16
  • Mounting
    Straight
  • UL Standard
    cULus Listed
  • CSA Standard
    CSA Certified
  • Enclosure Size (see diagram table)
    E - 57 x 27 mm
