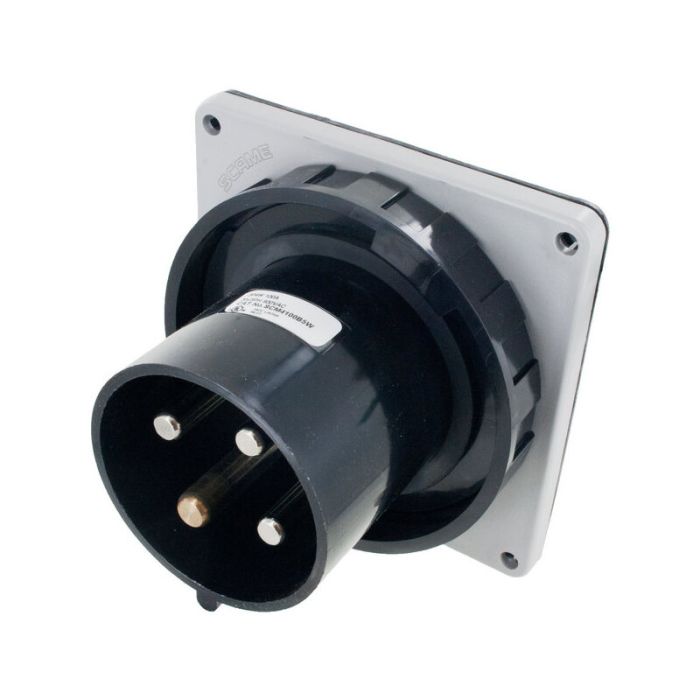

Pin and Sleeve Inlet - 100A, 3PH-600V, 5H, 3-Pole 4-Wire Grounding, Watertight (IP67), Black
- Rated current: 20A, 30A, 60A, 100A
- Rated voltage: 100–690V~; Frequency: DC, 50–500Hz; Insulating voltage: 500/690V~
- Operating ambient temperature: -25°C to +40°C (standard); max up to +70°C
- High durability ratings: IK10 (20J) impact resistance; self-extinguishing GW test 650°C / 850°C and UL94 V1 (3mm)
- Inter-mateable with other IEC 60309 devices; tool-less design available for 20A & 30A for faster installation
EUREKA Line:
- Protection degree (IEC 60529): IP44 - IP67
- Material: VALOX® (Non-Leaching)
-
-
-
-
-
Series - Pin and Sleeve Devices
Eureka
-
-
-
-
-
-
Cable OD Min AWG Min mm2
32
-
Cable OD Min AWG Max AWG
1.79
-
Cable OD Min AWG Max mm2
45
-
-
Frequency
D.C. - 50 - 500Hz
-
-
Operating Ambient Temperature
-25°C + 40°C
-
IK degree at 20
IK10 (20J)
-
Corrosion Resistance
All metallic components stainless steel or nickel plated brass. Sleeve pressure rings of zinc plated steel
-
-
-
-
Cable Bushing
Solid neoprene, onion ring type
-
O-Ring, Seals & Gaskets
Solid neoprene
-
Pin & Sleeves
Nickel plated brass
-
Sleeve Force Ring
Zinc plated steel
-
Terminal Screws
Nickel plated steel
-
Flap/Screw CoverSprings
Stainless Steel
-
SNAP-ON Spring
Stainless Steel
-
-
