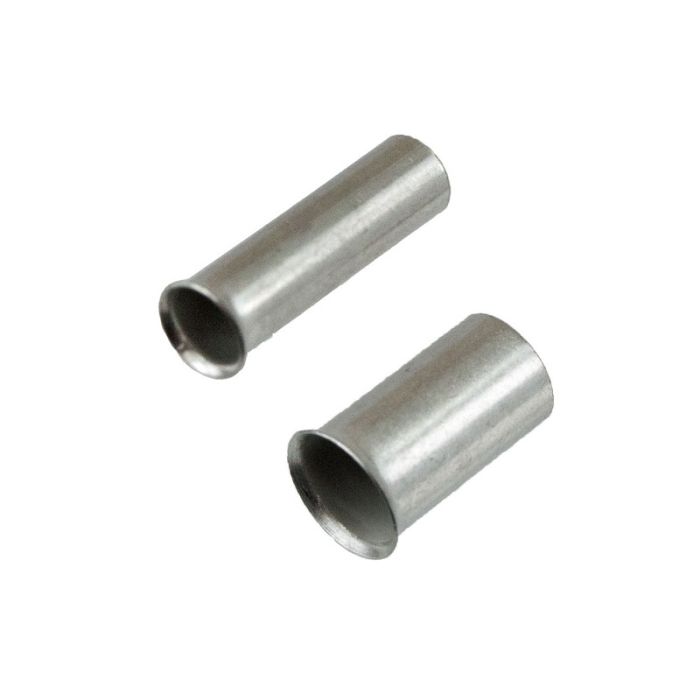

4/0 AWG Non-Insulated Ferrule - 32mm - 50pcs

Item
FERN-4/0-32L
  • Insertion funnel made of polypropylene with heat resistance up to 105°C.
  • Manufactured from E-Copper for high conductivity.
  • Electro-tinned surface for enhanced corrosion resistance.
  • Minimum coating thickness: 3m.
  • Rated for a maximum of 600V.
  • Tolerances: after part 1
  • Wire Gauge
    4/0 AWG
  • Type - ferrules
    Non-Insulated Ferrules
  • Insulation Material
    Non-Insulated
  • Quantity
    50
  • Tool
    V953
  • Voltage - ferrules
    600V
  • Shipping Dimensions (cm)
    17.9 L 25.5 W 5.1 H
  • Shipping Weight (kg)
    0.3820
  • Size (mm²)
    120.00
  • d1 (in.)
    16.50
  • d2 (in.)
    19.00
  • L (in.)
    32.00
  • S (in.)
    0.50
  • RoHS
    RoHS compliant
