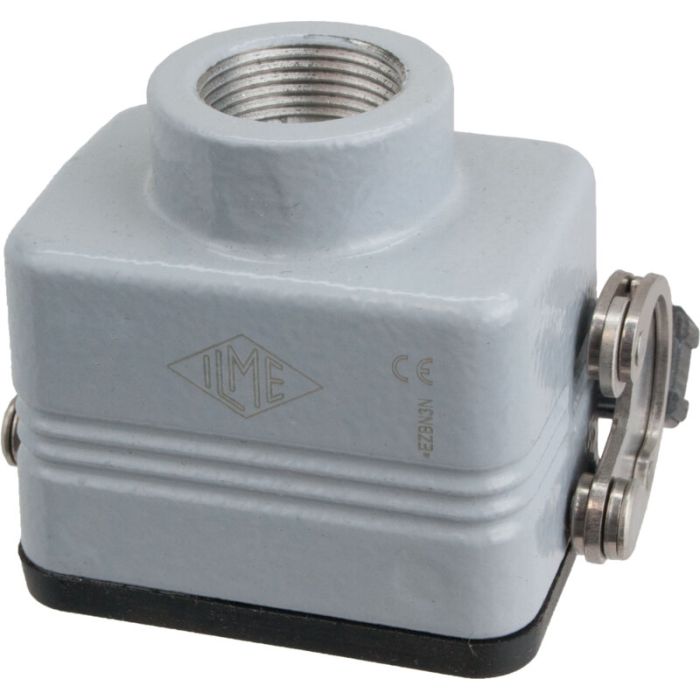

Cable Coupler - C Series Locking Lever C-Type - Pg21 Top with Adapter Cable Entry - Tall
Item
ECC06S5
- Rated current: 10A - 16A - 35A - 40A - 80A
- Rated voltage: up to 600V
- Protection degree: IP65/IP66/IP69
- Min. operating ambient temperature: -40°C (for most inserts)
- Max. operating ambient temperature: +125°C (for most inserts)
- Self-extinguishing GW test: 960°C
- Self-extinguishing UL94: V0
- IK degree at 20°C: IK10 (20J)
Cable couplers can be used to create connections without securing a base to a surface
- Use couplers to mate with hoods
