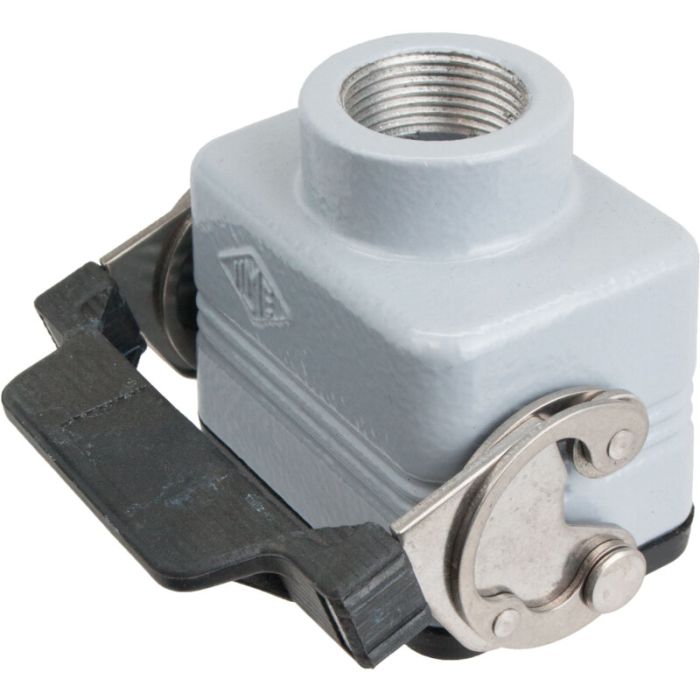

Cable Coupler - C Series Locking Lever C-Type - Pg16 Top Cable Entry

Item
ECC06S4
  • Rated current: 10A - 16A - 35A - 40A - 80A
  • Rated voltage: up to 600V
  • Protection degree: IP65/IP66/IP69
  • Min. operating ambient temperature: -40°C (for most inserts)
  • Max. operating ambient temperature: +125°C (for most inserts)
  • Self-extinguishing GW test: 960°C
  • Self-extinguishing UL94: V0
  • IK degree at 20°C: IK10 (20J)

Cable couplers can be used to create connections without securing a base to a surface

  • Use couplers to mate with hoods
  • Type - multi connectors
    Cable Coupler
  • Series - Multi Connect
    E
  • Thread Type
    PG
  • Bases & Hoods
    CC - Cable Coupler Hood
  • Lever Style
    Single
  • Thread Size (Pg)
    16
  • Shipping Dimensions (cm)
    7.4 L 7.4 W 5.9 H
  • Shipping Weight (kg)
    0.1540
  • Material
    Metal
  • Closing Type
    1 Lever
  • Entry
    Top
  • UL Standard
    cULus Listed
  • CSA Standard
    CSA Certified
  • Enclosure Size (see diagram table)
    C - 44 x 27 mm
  • Locking Type
    C-Type
  • Port Thread
    Pg16
