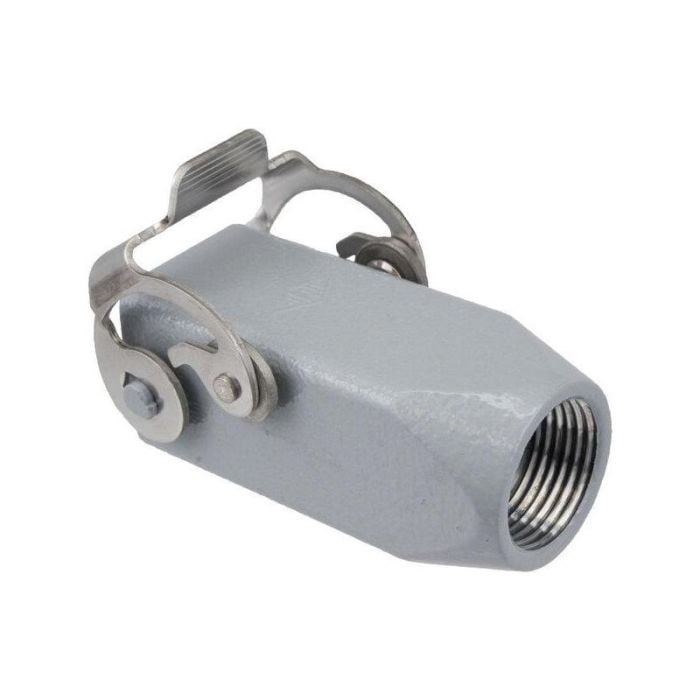

HOOD - 3 or 4P+Ground SINGLE LEVER CABLE COUPLER METAL TYPE GRAY CABLE GLAND NPT 3/8
Item
ACC03S9
- Rated current: 10A - 16A - 35A - 40A - 80A
- Rated voltage: up to 600V
- Protection degree: IP65/IP66/IP69
- Min. operating ambient temperature: -40°C (for most inserts)
- Max. operating ambient temperature: +125°C (for most inserts)
- Self-extinguishing GW test: 960°C
- Self-extinguishing UL94: V0
- IK degree at 20°C: IK10 (20J)
Hoods should be the first part of the enclosure selected and can be mated with cable couplers, surface mount bases or panel mount bases
