Cover - A Series - Locking Lever C-Type - 1 Lever - For Male Inserts, w/Eyelet

Item
AP03SL1
  • Rated current: 10A - 16A - 35A - 40A - 80A
  • Rated voltage: up to 600V
  • Protection degree: IP65/IP66/IP69
  • Min. operating ambient temperature: -40°C (for most inserts)
  • Max. operating ambient temperature: +125°C (for most inserts)
  • Self-extinguishing GW test: 960°C
  • Self-extinguishing UL94: V0
  • IK degree at 20°C: IK10 (20J)

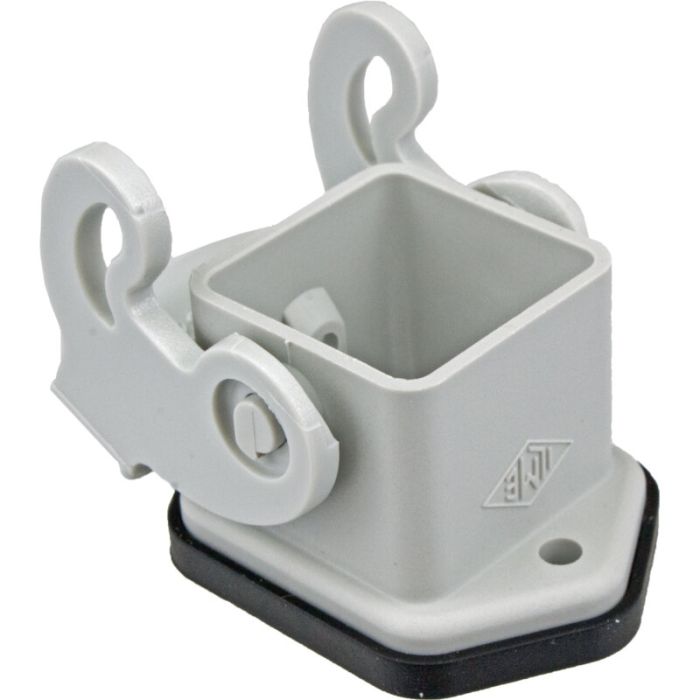

main product photo
  • Type - multi connectors
    Cover
  • Series - Multi Connect
    A
  • Style
    With Pegs
  • Lever Style
    Single
  • Covers & Shapes
    Separate Dust Cover
  • Colour
    Grey
  • Shipping Dimensions (cm)
    3.1 L 11.1 W 1.9 H
  • Shipping Weight (kg)
    0.0180
  • Material
    Metal
  • Closing Type
    Pegs for 1 Lever
  • UL Standard
    cULus Listed
  • CSA Standard
    CSA Certified
  • Special Features
    For Male Inserts, w/ Eyelet
  • Enclosure Size (see diagram table)
    A - 21 x 21 mm
  • Locking Type
    C-Type
