LED Tractor/Utility Lamp, 30° Spot Beam, 1440 Lumens, Rectangular - Aluminum Housing (10-30VDC)

Item
725231
RECTANGULAR

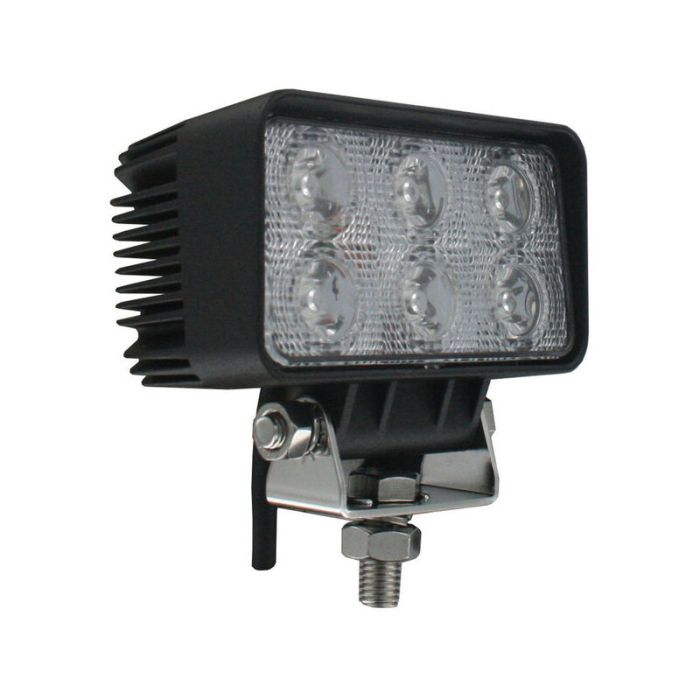

main product photo
  • Package Quantity
    PC
  • Approx. DImension
    4-3/8" X 2-3/8"
  • Beam
    30° SPOT
  • Current Draw
    1.40A @ 12V, 0.73A @ 24V
  • Diode Count
    6 X 3W
  • EMC Technology
    YES
  • Function
    TRACTOR/UTILITY
  • Housing - Material
    DIE-CAST ALUMINUM (BLACK)
  • IP Rating
    IP67
  • Lens - Material
    POLYCARBONATE
  • Light Output
    WHITE
  • Lumens
    1440 LUMENS
  • Mount
    PEDESTAL
  • PKG/QTY
    1 PC
  • RFI Protection
    YES
  • Stud Size
    8MM
  • Voltage - lighting & safety
    10-30VDC
  • Wattage
    18W
