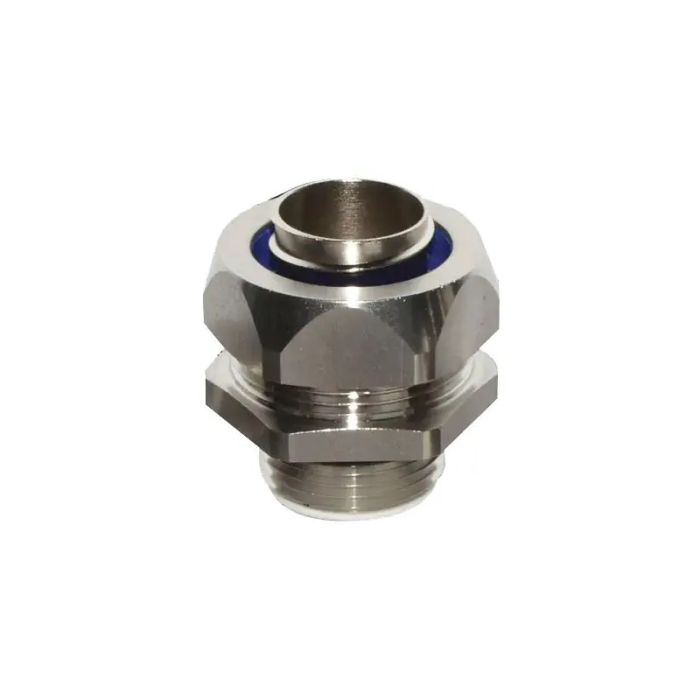

1 1/4" LiquidTight Connector - Straight Stainless Steel

Item
LMSS-41
  • Rated IP68 and NEMA 4X, stainless steel liquidtight connectors provide maximum corrosion resistance and durability.
  • Used to connect liquidtight conduit into knockout or threaded NPT openings.
  • Suitable for wet or dry locations, sealing connections against dust, dirt, oil, water, chemicals, and corrosive elements.
  • Constructed with Type 304 stainless steel body and ferrule, with nylon insulated throat and Viton® O-ring.
  • Available in straight and 90° configurations, sizes 3/8" to 2".
  • Ideally suited for OEM and MRO applications in corrosive and demanding environments including food and beverage processing, petrochemical, pulp and paper mills, wastewater treatment, heavy-duty motors, generators, transformers, offshore oil rigs, chemical processing, portable equipment, and machine tool building.
  • Angle
    Straight
  • Body Hex (B)
    2.04"
  • CSA
    28985
  • Conduit Size
    1 1/4"
  • Dia. Across Flats (C)
    2.12"
  • Item Type
    Liquidtight Connector
  • Material
    304 Stainless Steel
  • O-Ring
    Viton
  • Protection
    IP68, NEMA 4X
  • Thread Length (A)
    0.63"
  • UL
    E53599/ E52002/ E52002N/ E157356N
  • RoHS
    RoHS compliant
