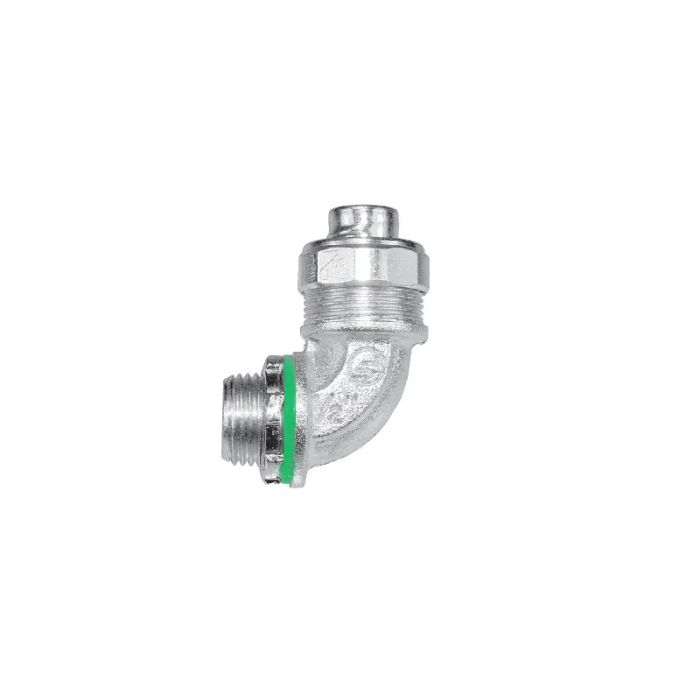

1/2" Liqua-Seal Connector - 90° Zinc-Plated Malleable Iron - Standard

Item
LML-11
  • L-Series Liqua-Seal connectors are made of steel with chromium zinc plating on the body, ferrule, locknut, and clamp nut for superior corrosion resistance.
  • Rated IP65 and UL Listed & CSA Certified with a watertight and oiltight design.
  • Provides strain relief and reduces stress on components and termination points.
  • Available in straight, 90°, and 45° body styles, with options for insulated throats and wire mesh grips.
  • Die-cast zinc versions are also available.
  • Ideal for use in food processing, chemical processing, offshore rigs, pulp and paper, automation equipment, heavy-duty motor housings, and medical equipment.
  • Angle
    90°
  • CSA
    28985
  • Conduit Size
    1/2"
  • Item Type
    Liquidtight Connectors
  • Material
    Zinc-Plated Malleable Iron
  • Mesh Length (in.)
    3 7/8"
  • Protection Class
    IP65
  • TYPE - cord grip item
    Standard
  • UL
    E53599/ E52002/ E52002N/ E157356N
  • Shipping Dimensions (cm)
    3.4 L 6.7 W 3.3 H
  • Shipping Weight (kg)
    0.1040
