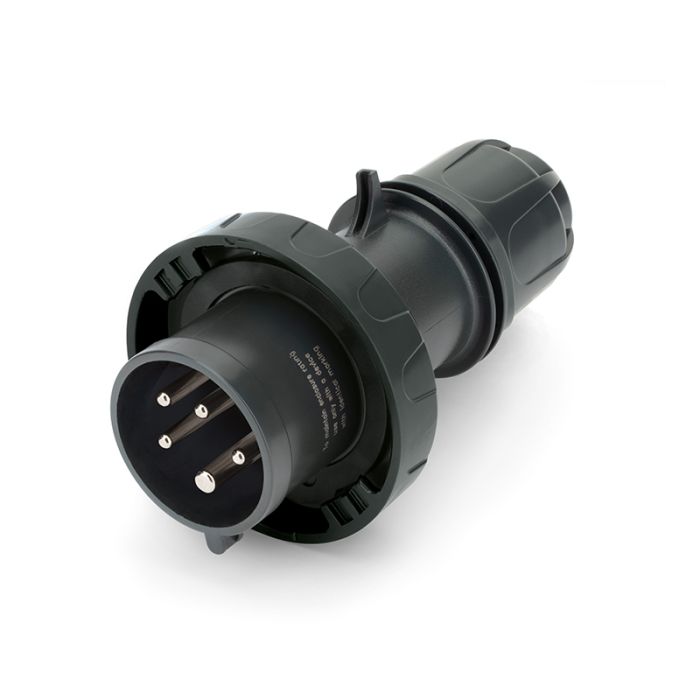

Pin and Sleeve Plug - 20A, 3PH-Y-347/600V, 5H, 4-Pole 5-Wire Grounding, Watertight (IP69), Black
Item
SCA520P5W
- Rated current: 20A, 30A, 60A, 100A
- Rated voltage: 100–690V~; Frequency: DC, 50–500Hz; Insulating voltage: 500/690V~
- Operating ambient temperature: -25°C to +40°C (standard); max up to +70°C
- High durability ratings: IK10 (20J) impact resistance; self-extinguishing GW test 650°C / 850°C and UL94 V1 (3mm)
- Inter-mateable with other IEC 60309 devices; tool-less design available for 20A & 30A for faster installation
OPTIMA Line (20A and 30A):
- Protection degree (IEC 60529): IP44 - IP69
- Material: Silossane (Non-Leaching)
