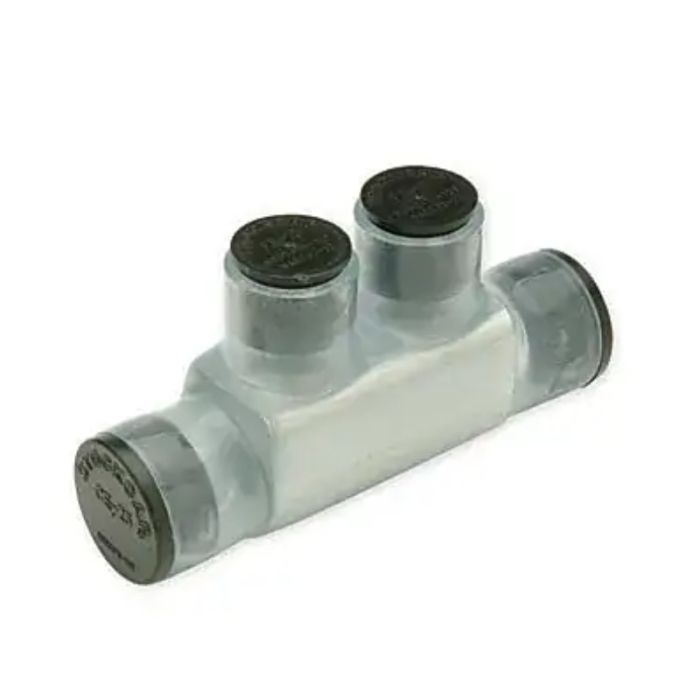

Aluminum Clear Pre Insulated Splicer/Reducer - 14 AWG - 1/0 AWG
Item
IISR1/0
- Manufactured from high-strength aluminum alloy.
- Dual-rated for aluminum and copper conductors, 600 Volt, 90°C.
- Wide conductor range: 500 kcmil – 14 Sol.
- Suitable for use in cable trays, raceways, ducts, and troughs.
- Pre-filled with oxide inhibitor to prevent oxidation, moisture, and contaminants from entering the contact area.
- Supplied with removable access plugs over screw and conductor ports for protection against contaminants.
- Pre-insulated at factory with clear, high-dielectric-strength plastisol.
- Black insulation is UV resistant.
- Saves time, eliminates taping, and reduces overall installation costs.
- Abrasion- and chemical-resistant; will not support combustion.
