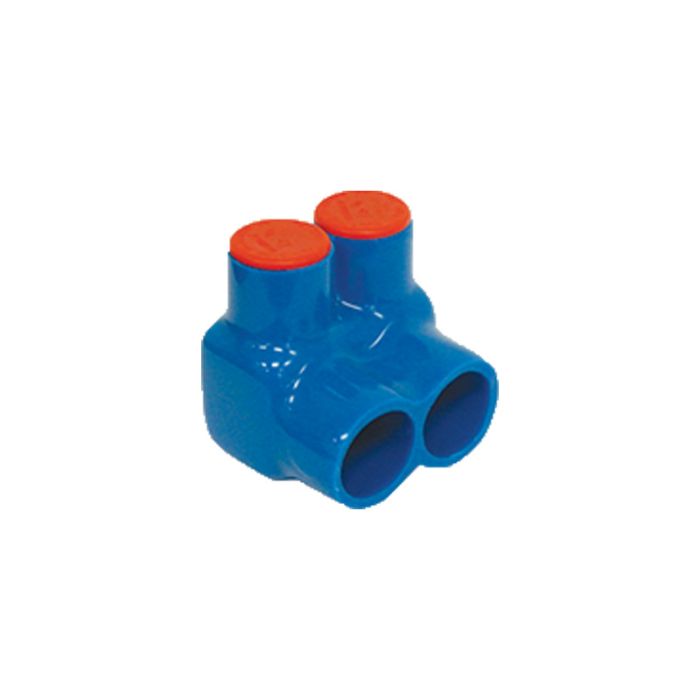

Copper Blue Pre - Insulated Power Bar - Two Ports with Single Sided Conductor Entry - 4 AWG - 350 kcmil
Item
IMLC3502S
Heavy Duty Copper Mechanical Connectors:
- Manufactured from high conductivity copper alloy.
- Ideal for use in demanding motor applications.
- Reusable – ideal for installing, testing, or replacing motors.
- Suitable for use in cable trays, raceways, ducts, and troughs when the conductivity of a copper connection is required.
- Wide conductor range: 500 kcmil – 18 Sol.
- Rated for use with solid, stranded, Hypalon, and DLO copper conductors, 600 Volt, 90°C.
- Copper alloy set screws provide a low-resistance connection.
- Supplied with removable access plugs over screw ports.
Pre-insulated at factory with high dielectric strength plastisol:
- Saves time, eliminates taping, and reduces overall installation costs.
- Abrasion- and chemical-resistant.
- Will not support combustion.
