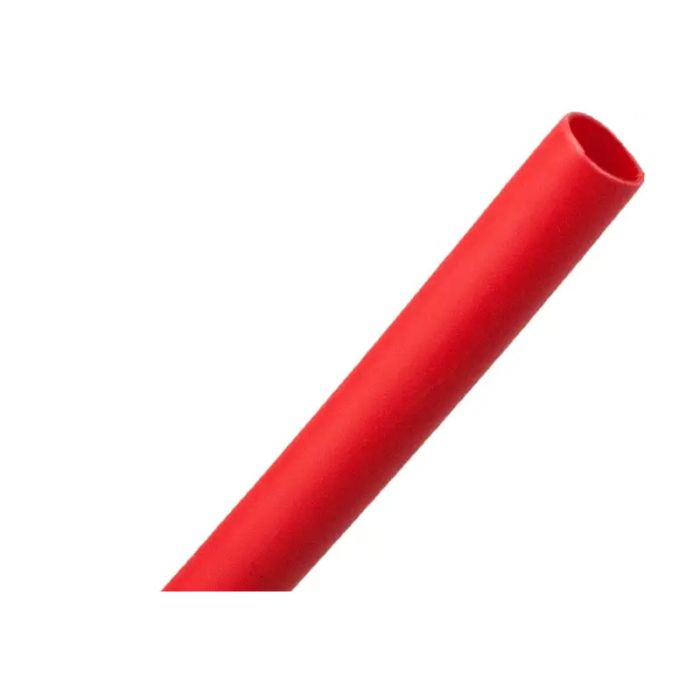

Single Wall Heat Shrink (2:1), 3/8" ID, Red, 4'

Item
HSPO-375-2-IIL

Description

HSPO thin wall, heat shrinkable tubing is a general purpose heat shrink tubing made from a specially formulated, cross-linked polyolefin. It offers excellent electrical, chemical, and physical properties. This tough, flexible tubing can be used for insulation, harnessing, strain relief, and identification purposes in a variety of industrial and military applications.

Main Features

  • Shrink ratio of 2 to 1.
  • Meets UL and CSA requirements.
  • Available in 14 standard sizes and 6 colors.
  • Flame retardant (except clear).
  • Low smoke generation.
  • Available in standard 4-foot lengths or 100-foot spools.
  • 600V rated.
  • Continuous operating temperature: -45°C to 125°C.
  • Halogen free.
  • UL224 VW-1 rated (black only).
  • Shrink Ratio
    2:1
  • Expanded ID
    0.375 (9.50)
  • Recovered ID (Approx)
    0.188 (4.70)
  • Colour
    Red
  • Length
    4 FT
  • Features
    Thin-Wall
  • Temperature Range
    -45°C TO 125°C
  • Wall Thickness In (mm)
    0.025 (0.64)
  • Internal Diameter
    3/8INCHID
  • CSA File
    CSA C22.2, 198.1 FILE 220127
  • UL Rating
    UL 224, File 203950 (colours only)
  • Voltage Rating
    600 V Rated
