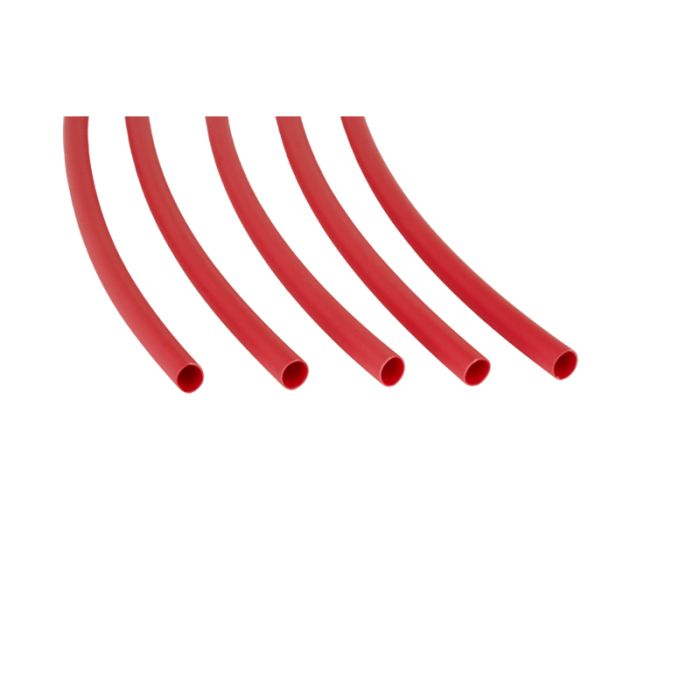

Dual Wall, Adhesive-Lined Heat Shrink Tubing (3:1) 3/16"ID, Red 4'x5pcs (20-12GA)

Item
769982
  • 3:1 shrink ratio with flexible, adhesive-lined cross-linked polyolefin construction.
  • Adhesive inner wall provides superior sealing against water, moisture, and contaminants.
  • Excellent coverage for irregularly shaped connectors and components.
  • Bonds to plastics, rubber, neoprene, steel, and polyethylene.
  • Provides strain relief, sealing, and electrical insulation for in-line splices and connections.
  • Abrasion-resistant and suitable for tubes, pipes, and wire harness repair.
  • Operating temperature: -45°C to 125°C; minimum shrink temperature: 120°C.
  • Flame retardant for added safety.
  • Shrink Ratio
    3:1
  • Use With Wire Size (Approx)
    20-12GA
  • Expanded ID
    3/16"
  • Recovered ID (Approx)
    1/16"
  • Colour
    Red
  • Material
    Polyolefin
  • Inner Wall
    Adhesive-Lined
  • Outer Wall
    Flexible
  • Length
    4 FT
  • Package Type
    Box
  • Water/Moisture Proof
    Yes
  • Flame Retardant
    Yes
  • Features
    Seal Wall
  • Temperature Range
    -45°C TO 125°C
  • Minimum Shrink Temperature
    120°C
