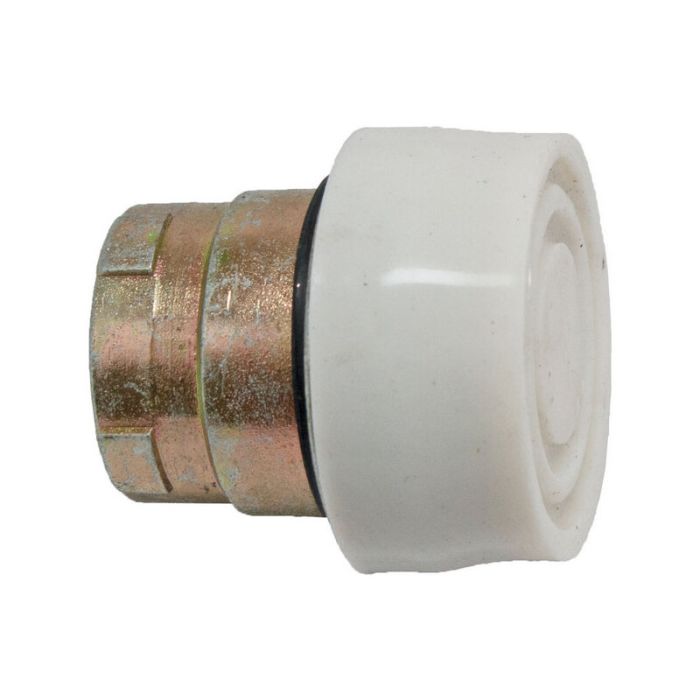

Booted Push Button Spring Return - Chromium Plated Metal Bezel - White

Item

PB-BP1

Distributor Login

Package Quantity

EA
Approval

UL, cUL, CSA, CE
Cabling/Terminal Capacity

1x0.5mm² and 2x1.5mm²
Colour

White
Contact Operation

Slow action, Positive Opening
Dielectric Strength

2.5KV for 1 minute
Initial Contact Resistance

≤ 25 milli Ohm
Insulation Category

Group C conforming to NF C 20-040, VDE 0110
Insulation Resistance

2M Ohm min (500 VDC)
Knob Size

Ø ≤ 25mm
Mechanical Life

All working positions are allowed
Operating Force

Push Buttons - 1 'NO'=10N, 1'NC'=8N Additional contacts - 'NO'=+5N, 'NC'=+3N
Pollution Degree

3
Protection Degree

IP65
Rated Insulation Voltage

500V conforming to IEC 60947-1, UL 508 & CSA 22-2 n° 14
Rated Power

Conforming to IEC 60947-5-1: utilization categories AC 15 & DC 13
Rated Thermal Current

10A
Reference Standard

IEC 60947-5-1, EN 60947-5-1, IEC 337-1, UL 508, CSA C-22-2 n° 14
Shock Resistance

Push Buttons: 70g, Mushroom Head Push Buttons: 15g, Selector Switches: 200g conforming to IEC 68-2-27
Short Circuits Protection

10A 500V, Cartridge Fuse g1 or N conforming to IEC 337-1
Temperature

-40°C ~ + 70°C (Storage) -25°C ~ + 70°C (Working)
Type - push button

Booted Push Button Spring Return IP66
Vibration Resistance

60 mm Mushroom Head Push Buttons: 8g, Other Push Buttons & Pilot Lights: 15g (40Hz
Working Position

All Working positions are allowed
