Female Insert - D Series Crimp Connection - 7 Poles - 600V/10A

Item
D07RC
  • Protection Degree: IP65/IP66/IP69
  • Minimum operating ambient temperature: -40°C (for most inserts)
  • Maximum operating ambient temperature: 125°C (for most inserts)
  • Self-extinguishing GW test: 960°C
  • Self-extinguishing UL 94: V0
  • IK degree at 20°C: IK10 (20J)

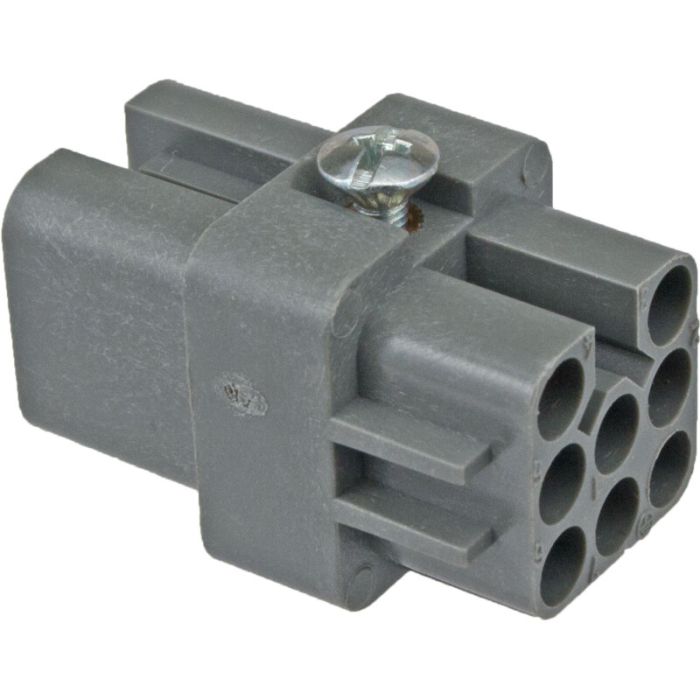

main product photo
  • Type - multi connectors
    Insert
  • Series - Multi Connect
    D
  • Number of Poles
    7
  • Gender
    Female Receptacle
  • Connection Type
    Crimp Connection
  • Voltage - multi connectors
    600V
  • Colour
    Grey/Black
  • Shipping Dimensions (cm)
    2.1 L 2 W 3.4 H
  • Shipping Weight (kg)
    0.0100
  • Amps
    10
  • Mounting
    Straight
  • UL Standard
    cULus Listed
  • CSA Standard
    CSA Certified
  • Enclosure Size (see diagram table)
    A - 21 x 21 mm
Male Insert - D Series Crimp Connection - 7 Poles - 600V/10A
SKU: D07PC
Male Insert - D Series Crimp Connection - 7 Poles - 600V/10A
Hood - A Series - Locking Lever C-Type - 1 Lever - Pg11 Top Cable Entry
SKU: ATEP03S2
Hood - A Series - Locking Lever C-Type - 1 Lever - Pg11 Top Cable Entry
10A FEMALE CRIMP CONTACT - SILVER PLATE 0.14mm2 - 0.37mm2 AWG 26 - 22
SKU: S22
10A FEMALE CRIMP CONTACT - SILVER PLATE 0.14mm2 - 0.37mm2 AWG 26 - 22
MULTIPOLE CONNECTOR ACCESSORIES
SKU: CCPZ MIL
MULTIPOLE CONNECTOR ACCESSORIES
