Female Insert - SA Series Crimp Connection - 6/36 Poles - 600V/40A

Item
SA6/36RC
female inserts for female contacts
  • Protection Degree: IP65/IP66/IP69
  • Minimum operating ambient temperature: -40°C (for most inserts)
  • Maximum operating ambient temperature: 125°C (for most inserts)
  • Self-extinguishing GW test: 960°C
  • Self-extinguishing UL 94: V0
  • IK degree at 20°C: IK10 (20J)

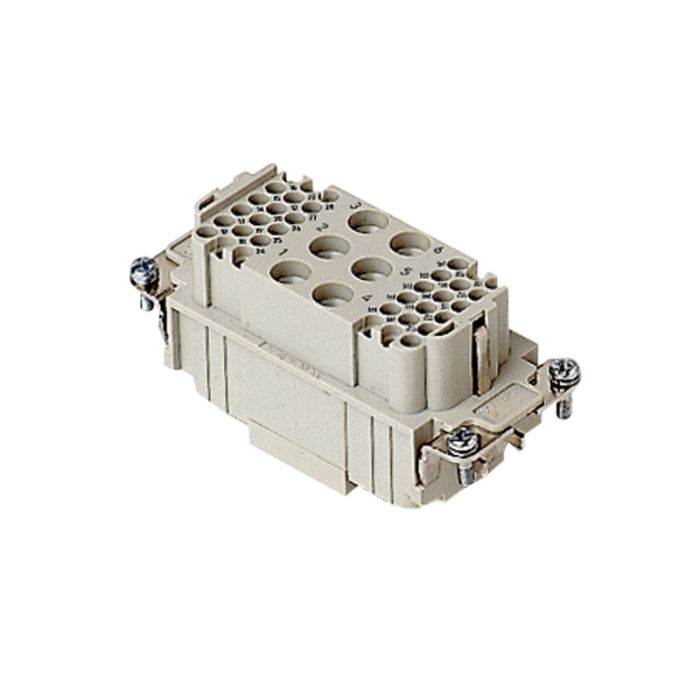

main product photo
  • Type - multi connectors
    Insert
  • Series - Multi Connect
    SA
  • Number of Poles
    6/36
  • Gender
    Female Receptacle
  • Connection Type
    Crimp Connection
  • Voltage - multi connectors
    600V
  • Shipping Dimensions (cm)
    3.3 L 8.5 W 4.2 H
  • Shipping Weight (kg)
    0.0740
  • Amps
    40
  • Mounting
    Straight
  • UL Standard
    cULus Listed
  • CSA Standard
    CSA Certified
  • Enclosure Size (see diagram table)
    H - 77.5 x 27 mm
