Female Insert - E Series Screw Terminal Connection - 24 Poles - 600V/16A - Gold Plated

Item
E24RS-GP
  • Protection Degree: IP65/IP66/IP69
  • Minimum operating ambient temperature: -40°C (for most inserts)
  • Maximum operating ambient temperature: 125°C (for most inserts)
  • Self-extinguishing GW test: 960°C
  • Self-extinguishing UL 94: V0
  • IK degree at 20°C: IK10 (20J)

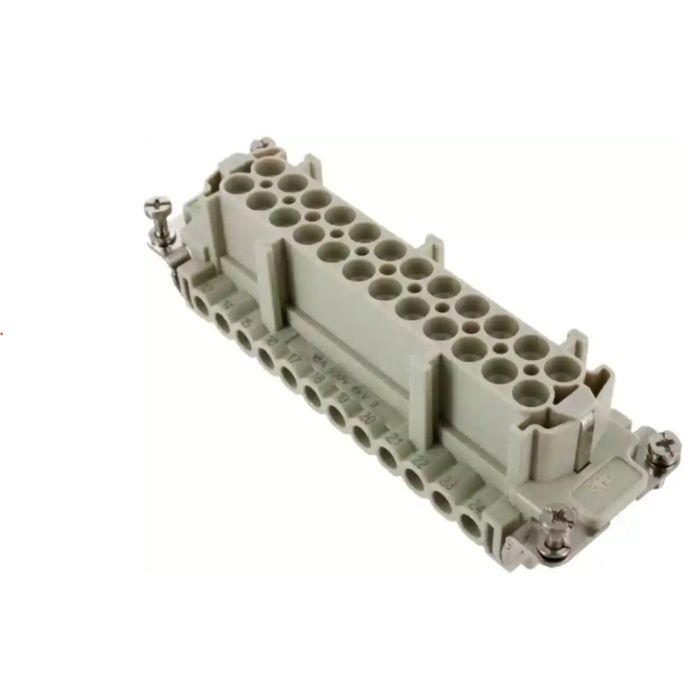

main product photo
  • Price on Request
    Contact Electrical Sales for Pricing
  • Type - multi connectors
    Insert
  • Series - Multi Connect
    E
  • Number of Poles
    24
  • Gender
    Female Receptacle
  • Connection Type
    Screw Terminal Connection
  • Voltage - multi connectors
    600V
  • Amps
    16
  • Mounting
    Straight
  • UL Standard
    cULus Listed
  • CSA Standard
    CSA Certified
  • Enclosure Size (see diagram table)
    J - 104 x 27 mm
