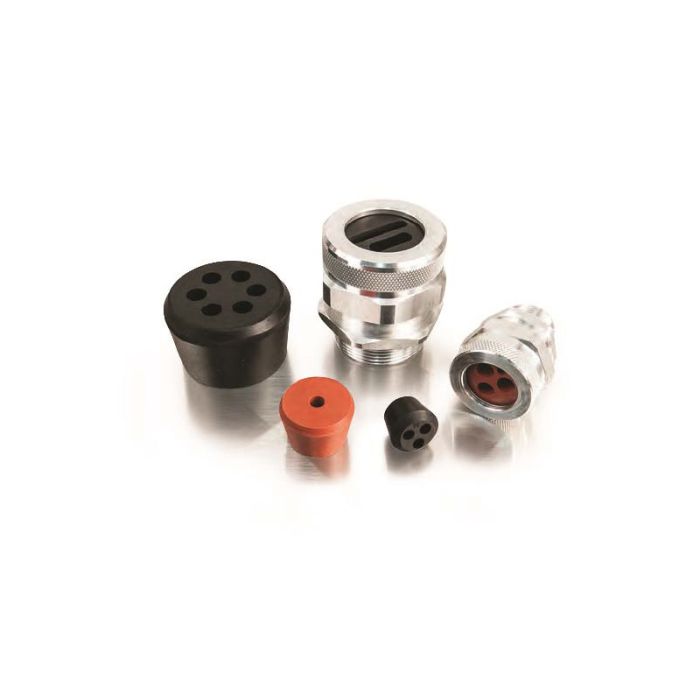

M 20 X 1,5 - Nickel-Plated Brass Metric Metal Cord Grip - 0.24" - 0.47"

Item
BRMC20AA

Material: Nickel-plated brass

Fixture pack: PA (NYLON), UL 94

Hermetic seal: NBR

O-Seal ring: NBR

Protection Degree: IP68-10 pressure (rotate position)

Working temperature: -40°C to 100°C
Instantaneous heat resistance up to 120°C

  • AG
    M 20 x 1,5
  • GL (in.)
    0.394
  • GL (mm)
    10
  • H (in.)
    0.906
  • H (mm)
    23
  • Inch
    0.24 - 0.47
  • Item Type
    Metric Metal Cord Grips
  • Material
    Brass, Nickel-Plated
  • Package Qty.
    50
  • Protection Class
    IP68
  • UL
    E360400
  • Shipping Dimensions (cm)
    10.2 L 20.5 W 11.9 H
  • Shipping Weight (kg)
    2.0660
