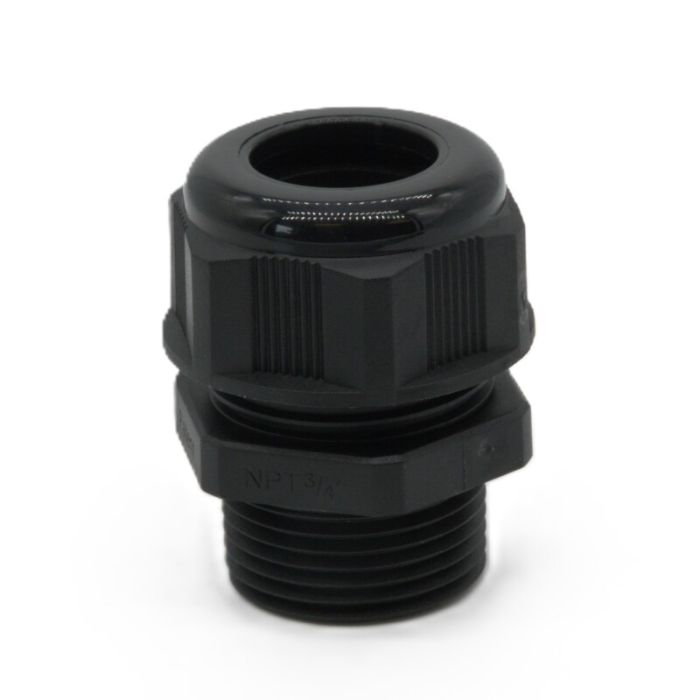

3/4" NPT - Dome Connector - 0.51" - 0.71" - Black

Item
RD21NA
  • Polyamide strain relief connectors resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether gasoline, mineral oil, and animal and vegetable oils.
  • Meets IP68 specifications for liquid-tight performance.
  • Suitable for underwater use up to 300 feet and underground direct burial applications.
  • Ideal for fiber optics, computers, control cabinets, instruments, medical/dental equipment, car washes, hot tubs, and carpet cleaning machines.
  • No disassembly required—simply push cable or tubing through the installed connector and tighten the dome nut.
  • B Max O.A Length (Dome)
    1.38
  • C Max O.A Length (Flex)
    5.12
  • CSA
    115116
  • Cable or Tubing Range (in.)
    0.51 - 0.71
  • Clearance Hole +.010 (in.)
    1.02
  • Color
    Black
  • D Thread Length (in.)
    0.59
  • F Wrenching Flats (in.)
    1.3
  • Item Type
    Dome Connectors
  • Material
    Polyamide 6
  • Operating Temperature
    Up to +150°C intermittent
  • Protection Class
    IP68, 5 bar
  • Seal
    Neoprene
  • Temperature Range
    -30°C to 80°C permanent
  • Thread Type & Size
    3/4" NPT
  • UL
    E199260
  • Shipping Dimensions (cm)
    3.5 L 4.4 W 3.7 H
  • Shipping Weight (kg)
    0.0200
  • RoHS
    RoHS compliant
