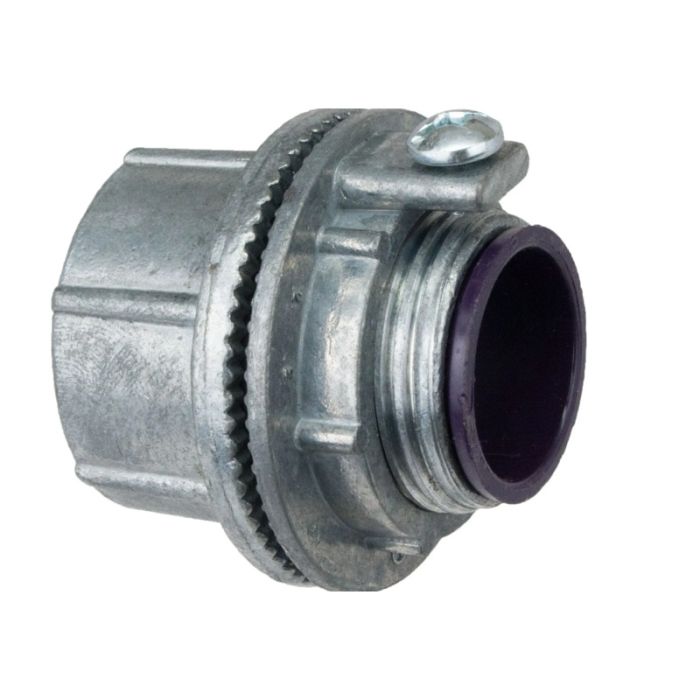

1/2"Die Cast Zinc - WaterTight Conduit Hub

Item
WH-1
  • Tuff-Seal WH Series watertight conduit hubs feature angled serrations for increased surface contact and a reliable watertight seal, even on rough or oversized knockouts.
  • Designed to connect rigid metal conduit (RMC) or IMC to threadless openings in electrical enclosures.
  • Rated NEMA 4 and suitable for both wet and dry location applications.
  • Simple 2-piece construction provides positive grounding, insulated throats to prevent wire abrasion, and an embedded O-ring for a watertight seal.
  • Grounded style options are also available.
  • A (in.)
    1.54
  • B (in.)
    1.31
  • CSA
    28985
  • Hub Size
    1/2"
  • Item Type
    Watertight Conduit Hubs
  • Material
    Die cast zinc
  • Mtg. Hole (minimum)
    0.84
  • UL
    E53599/ E52002/ E52002N/ E157356N
  • Shipping Dimensions (cm)
    3.5 L 3.5 W 0.8 H
  • Shipping Weight (kg)
    0.0140
