1 1/4" NPT Nickel-Plated Brass EMC Cable Glands - 0.866" - 1.260" Cable Range

Item
BRN4E36

Materials: Brass, Nickel-Plated

Clamping Insert: Polyamide 6 V2

Contact Spring: Special Copper Alloy

Protection Class: IP68 - 5 Bar

Seal: Chloroprene

O-Ring: NBR

Attachment Thread: EN60423

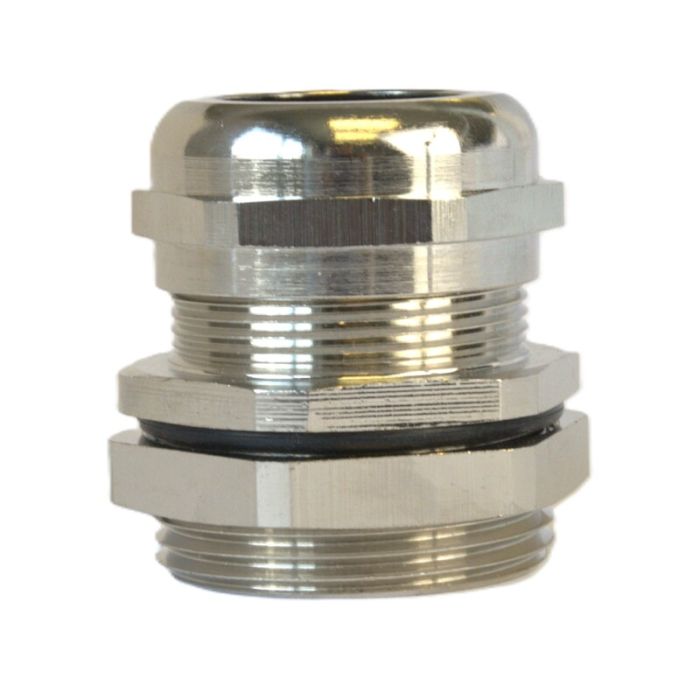

main product photo
  • Across Flats (in.) (C)
    1.968
  • Attachment Thread
    EN60423
  • CSA
    28985
  • Cable Range (in.)
    0.866 - 1.260
  • Clamping Insert
    Polyamide 6 V2
  • Contact Spring
    Special Copper Alloy
  • Item Type
    Dome Cap Cable Gland
  • Locking Nuts
    LN-125
  • Locknut material
    Steel
  • Material
    Brass, Nickel-Plated
  • O-Ring
    NBR
  • Protection Class
    IP68 - 5 Bar
  • Seal
    Chloroprene
  • Thread Length (in.) (B)
    0.35399999999999998
  • Thread Type & Size
    1 1/4" NPT
  • UL
    E53599/ E52002/ E52002N/ E157356N
  • Thread Length (in.)
    0.354
  • Across Flats (in.)
    1.968
  • Shield Diameter (in.)
    0.709 - 1.063
