M32 X 1.5 Nickel-Plated Brass EMC Cable Glands - 0.630" - 0.984" Cable Range

Item
BRM4E32

Materials: Brass, Nickel-Plated

Clamping Insert: Polyamide 6 V2

Contact Spring: Special Copper Alloy

Protection Class: IP68 - 5 Bar

Seal: Chloroprene

O-Ring: NBR

Attachment Thread: EN60423

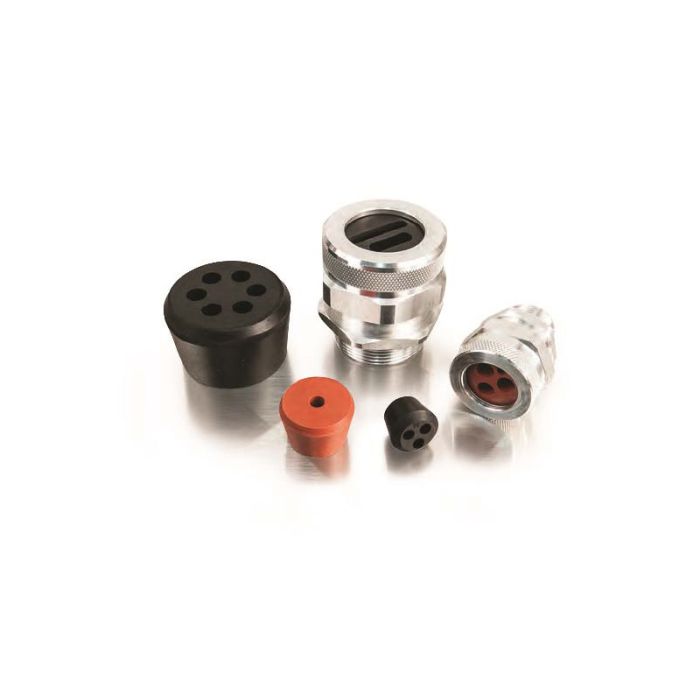

main product photo
  • Across Flats (in.) (C)
    1.57
  • Attachment Thread
    EN60423
  • CSA
    28985
  • Cable Range (in.)
    0.630 - 0.984
  • Clamping Insert
    Polyamide 6 V2
  • Clearance hole (in.)
    1.26
  • Contact Spring
    Special Copper Alloy
  • Item Type
    Dome Cap Cable Gland
  • Locking Nuts
    RLEM32
  • Material
    Brass, Nickel-Plated
  • O-Ring
    NBR
  • Protection Class
    IP68 - 5 Bar
  • Seal
    Chloroprene
  • Thread Length (in.) (B)
    0.35
  • Thread Type & Size
    M32X1.5
  • UL
    E53599/ E52002/ E52002N/ E157356N
  • Thread Length (in.)
    0.35
  • Across Flats (in.)
    1.57
  • Shield Diameter (in.)
    0.472 - 0.787
